Product Description::

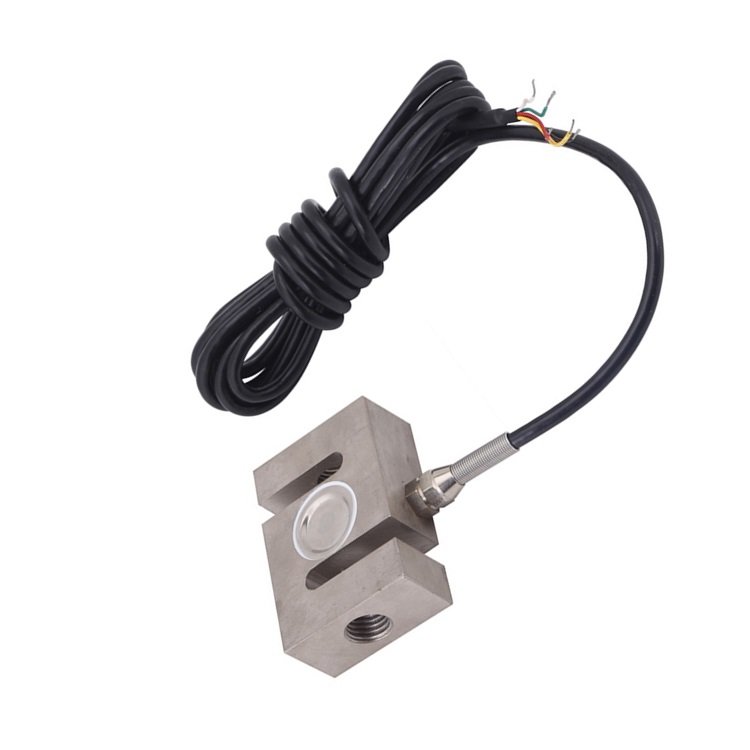

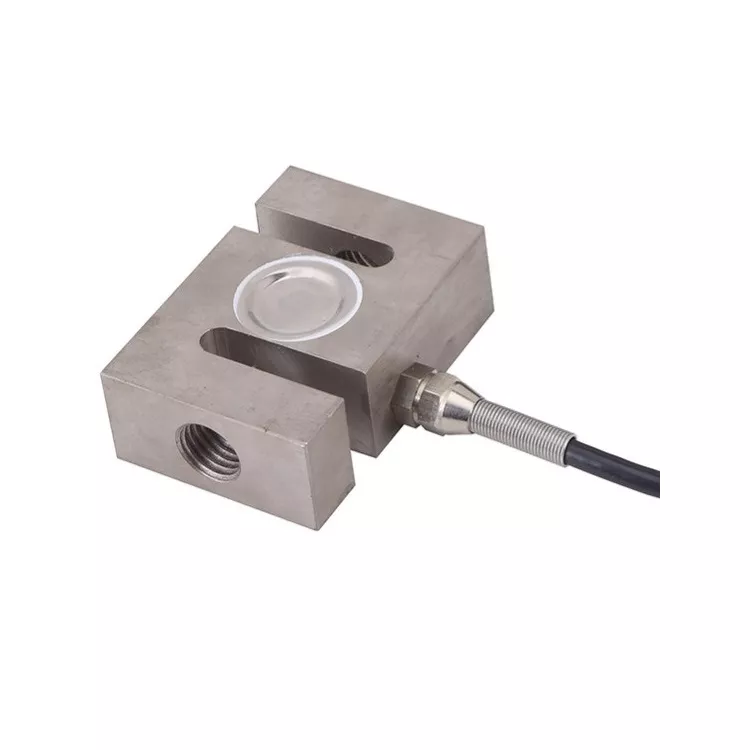

S type load cell, tension and compression, good output symmetry, compact structure, simply to install, full range of capacities. Suitable for electromechanical scale, crane scale, hopper scale and various special scales.

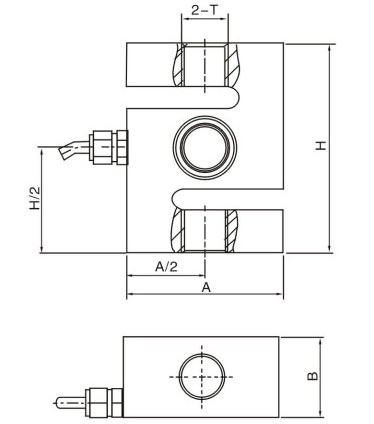

Dimension:
Technical Parameter:
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 갖추고 있습니다.
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 갖추고 있습니다.
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
