SAINTBOND / LC116 Load Cell Traction And Compression 30t Double Ended Shear Beam Alloy Steel Load Cell

Add to Wishlist
Share it:

LC116 Load Cell Traction And Compression 30t Double Ended Shear Beam Alloy Steel Load Cell

Product Description

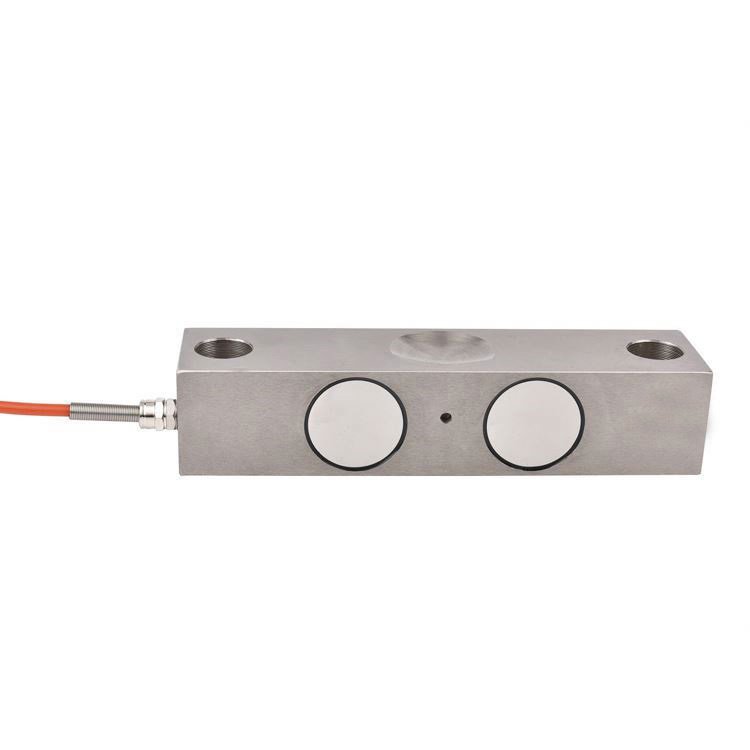

LC116-2

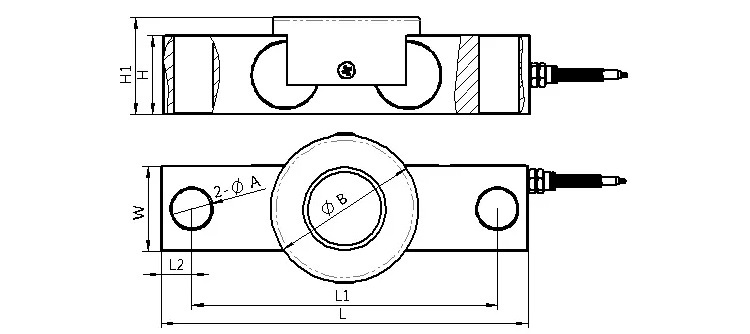

Dimensions:

LC116



Cap. L L1 L2 H H1 W A B
10~40t 240 200 20 52 64 56 26 96.5



Technical Parameter:

Rated Load: 200~250kN Operating Temp. Range: -30~+70℃
Sensitivity: (2.0±0.1%) mV/V Max. Safe Over Load: 150,120 (40~50t)%F.S
Combined Error: ±0.02% F.S Ultimate Over Load: 300,200(40~50t)%F.S
Creep Error(30min): ±0.01% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Tco: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Tc Span: ±0.02% F.S/10℃ Element Material: Alloy/Stainless Steel
Input Resistance: 750±5Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Cable: Length=13m
Output Resistance: 703±2Ω,703±5 Ω(L≥15m) Mode Of Connection: Red(Input+),Black(Input-),Green(Output+),White(Output-)



Product name LC116 Load Cell Traction And Compression 30t Double Ended Shear Beam Alloy Steel Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
