SAINTBOND / LC113 Zemic Compression Load Cell Stainless Steel Double Shear Beam Load Cell

Add to Wishlist
Share it:

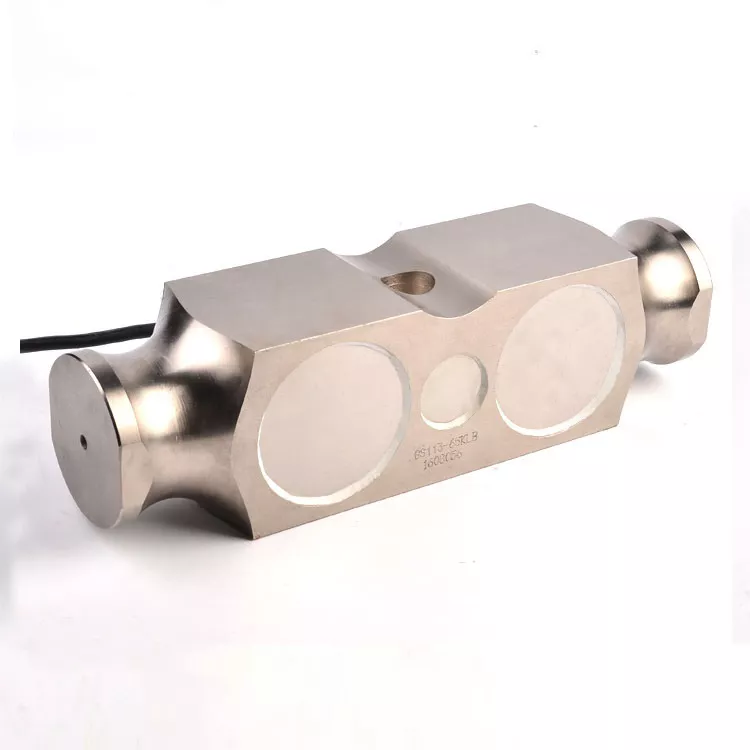

LC113 Zemic Compression Load Cell Stainless Steel Double Shear Beam Load Cell

Product Description

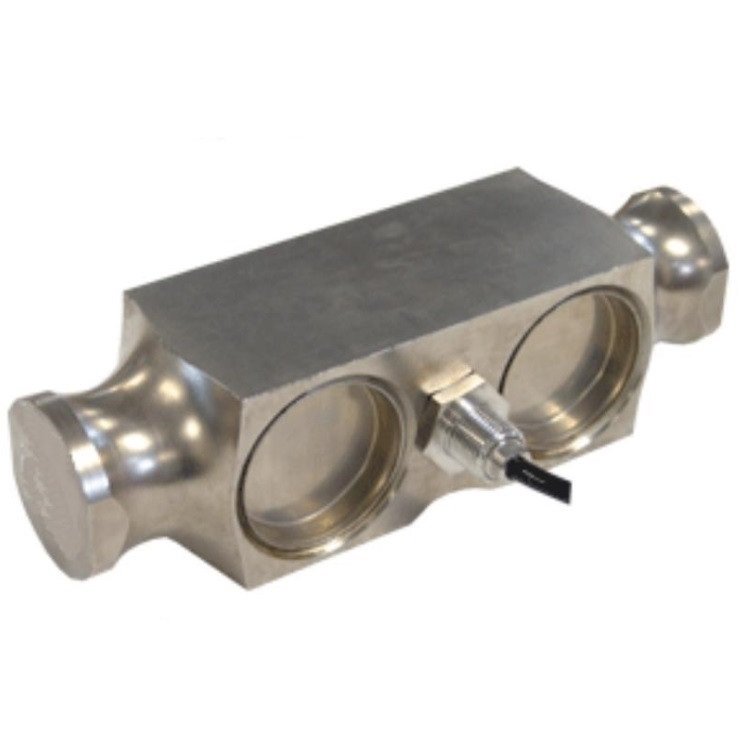

LC113-1

Dimensions Unit: mm(inch):

Cap./Size A B C D øE øF RG RH
50~150klb 260.35

(10.25)

 215.9

(8.50)

 76.2

(3.00)

 55.88

(2.20)

 52.32

(2.06)

 60.96

(2.40)

 25.4

(1.00)

 25.4

(1.00)
200klb 304.8

(12.00)

 254

(10.00)

 86.36

(3.40)

 63.5

(2.50)

 59.69

(2.35)

 69.85

(2.750)

 38.1

(1.50)

 38.1

(1.50)

LC113

Products Specification

◎LC113 load cell are available in the capacities 50Klb to 200Klb.

◎Steel construction, potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

◎Dual shear beam and they are suitable for truck scales,hopper scales and other electronic weighing devices.



Technical Parameter:

Rated Load: 50/60/100t(50/60/65/75/100/125/150Klb
Sensitivity: (3.0±0.1%) m V/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.03% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Tco: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: A:Alloy Steel, SS:Stainless Steel
Output Resistance: 703±2Ω Cable: Length=L:12m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC113 Zemic Compression Load Cell Stainless Steel Double Shear Beam Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
