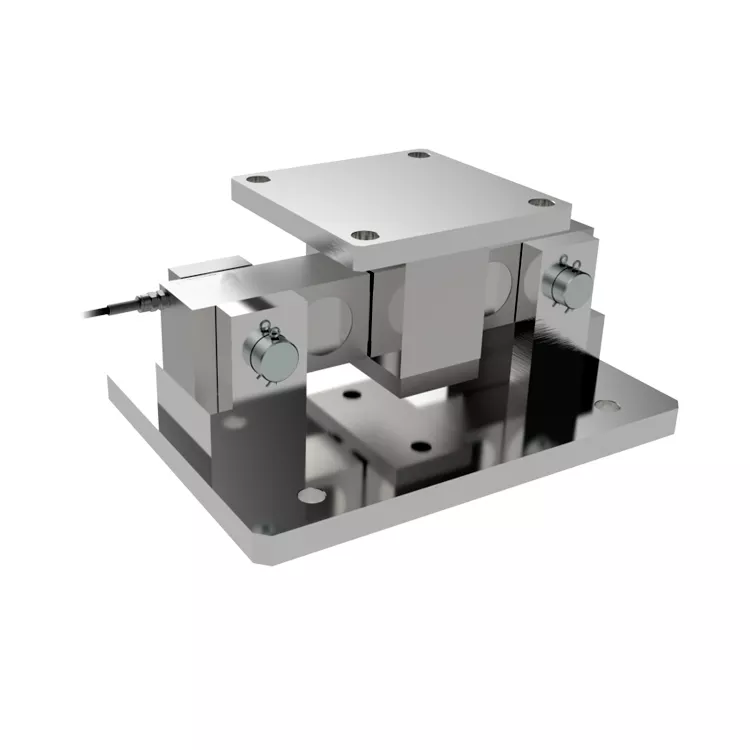

LC111M Zemic Miniature Compression Load Cell 100ton Double Ended Shear Beam Load Cells

Product Description

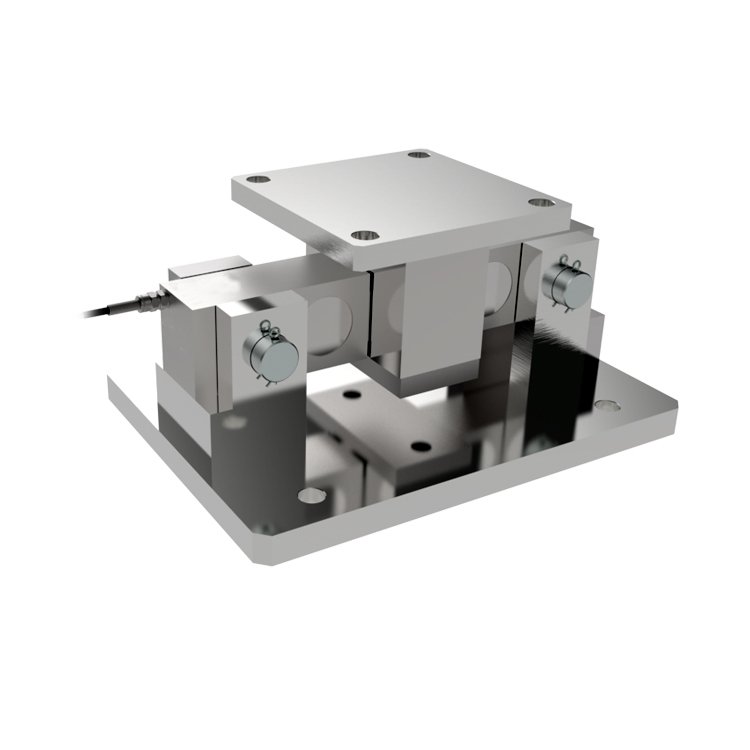

LC111M-1

Dimension:in mm (1mm=0.03937inches)

LC111M

Cap. A B C D E F H J K L M
(Klb) (mm)
10~25 6.50 10.00 7.50 8.00 8.00 6.00 0.78 6.00 0.75 0.75 0.78
40 7.80 14.00 11.50 10.00 8.00 7.50 1.12 6.00 0.75 1.00 0.78
50~75 9.50 14.00 11.50 10.00 9.00 7.50 1.12 6.50 1.00 1.00 1.12

Technical Parameter:

Rated Load: 10/25/50/75/100/125klb
Sensitivity: (3.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Tco: ±0.02% F.S/10℃ Max. Excitation Vol.: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: Alloy Steel, Stainless Steel
Output Resistance: 702±3Ω Cable: Length=L:12m(10~40klb,5~15t),

16m(50~75klb,20~40t)
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC111M Zemic Miniature Compression Load Cell 100ton Double Ended Shear Beam Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
