SAINTBOND / LC110B Bridge Mounts & Load Cell Truck Scale Dual Double Shear Beam Load Cells

Add to Wishlist
Share it:

LC110B Bridge Mounts & Load Cell Truck Scale Dual Double Shear Beam Load Cells

Product Description

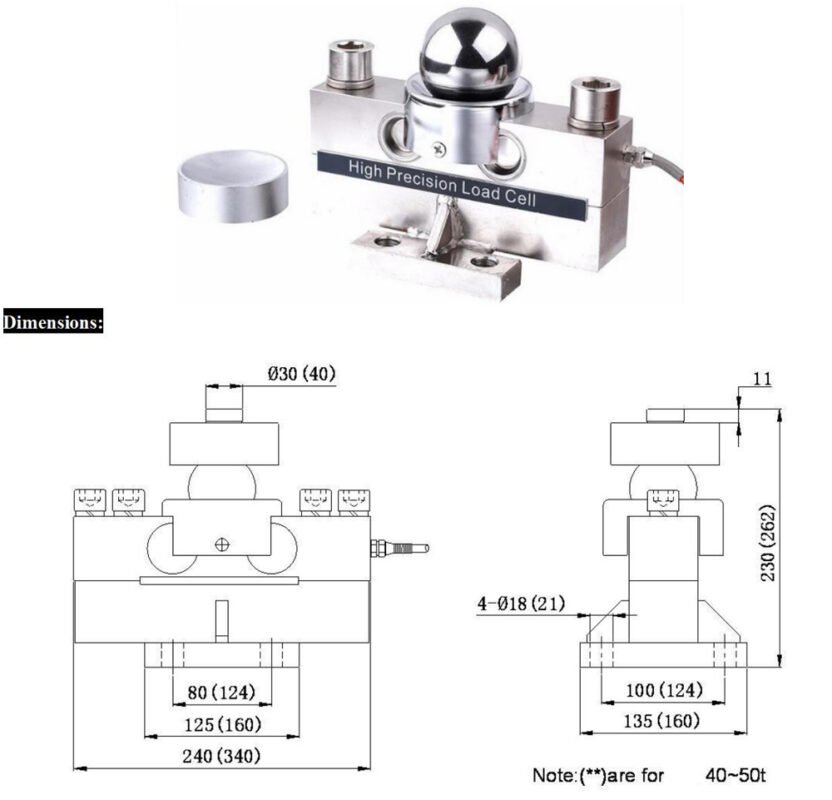

LC110B_01

Technical Parameter:

Rated Load: 5/10/20/25/30/40/50t Operating Temp. Range: -30~+70℃
Sensitivity: (2.0±0.1%) mV/V Max. Safe Over Load: 150,120 (40~50t)%F.S
Combined Error: ±0.02% F.S Ultimate Over Load: 300,200(40~50t)%F.S
Creep Error(30min): ±0.01% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Tco: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Tc Span: ±0.02% F.S/10℃ Element Material: Alloy/Stainless Steel
Input Resistance: 750±5Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Cable: Length=13m
Output Resistance: 703±2Ω,703±5 Ω(L≥15m) Mode Of Connection: Red(Input+),Black(Input-),

Green(Output+),White(Output-)

LC110B_02LC110B_03LC110B_04



Product name LC110B Bridge Mounts & Load Cell Truck Scale Dual Double Shear Beam Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
