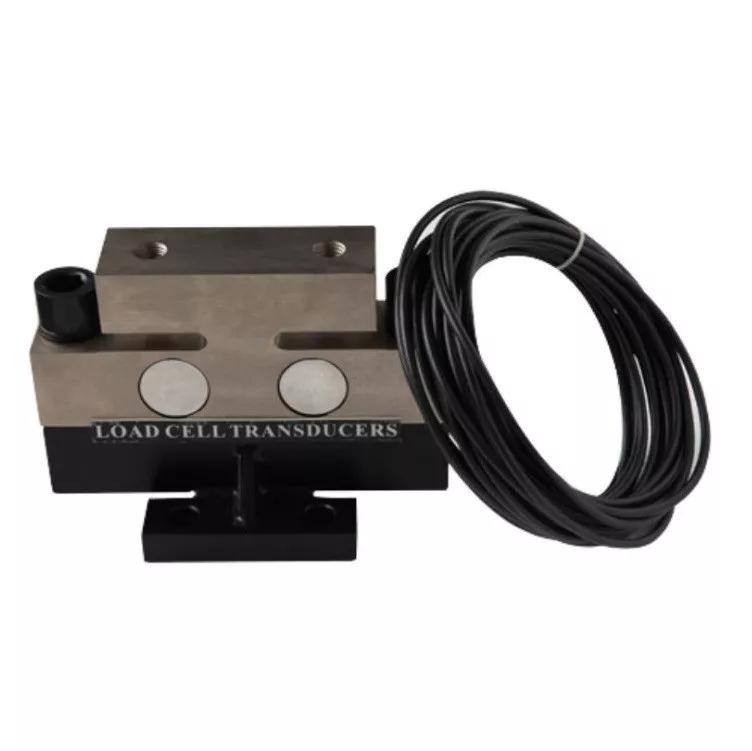

LC107 Double Shear Beam Line Double Ended Shear Beam Load Cell 10/20/30/40T

Product Description

LC107

LC107Dimension:

 Products Specification:

lLC107 load cell are available in the capacities 10t to 50t.And the customized capacity is available by request.

lAlloy steel construction, nickel plated , hermetically welded, oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

lDual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.

lIt is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Technical Parameter:

Rated Load: 10/20/30/40t Operating Temperature Range -30~+70℃
Sensitivity: (2.0±0.1%) mV/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.1% F.S Ultimate Over Load: 300%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation Vol.: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation Vol.: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: Alloy Steel /Stainless Steel
Input Resistance: 750±5Ω Cable: Length=L:13m
Output Resistance: 702±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Green(Output+),

Black(Input-),White(Output-)



Product name LC107 Double Shear Beam Line Double Ended Shear Beam Load Cell 10/20/30/40T
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
