SAINTBOND / LC106 Truck Scale Double Ended Beam Load Cells Working Principle 1/3/5/10/25/35/50/75/100klb

Add to Wishlist
Share it:

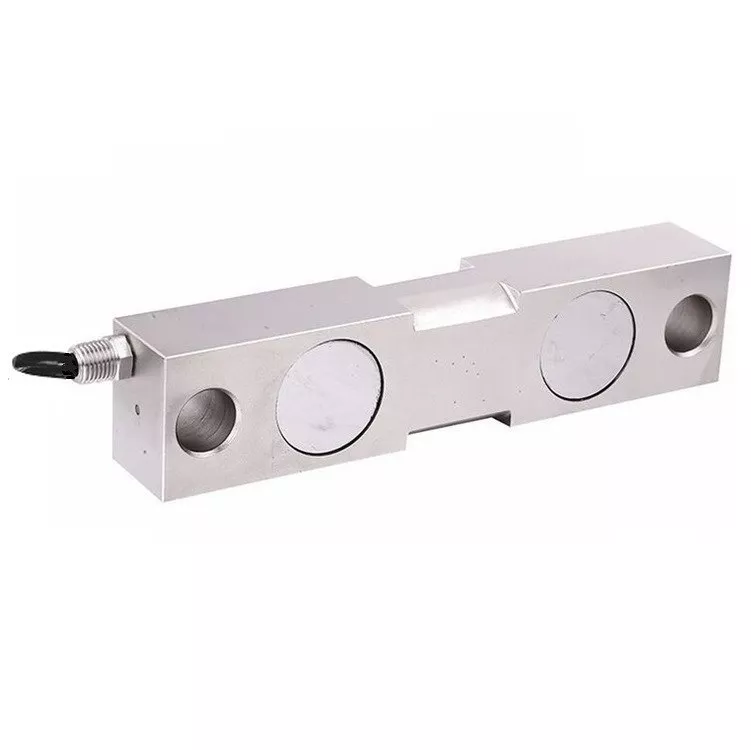

LC106 Truck Scale Double Ended Beam Load Cells Working Principle 1/3/5/10/25/35/50/75/100klb

Product Description

LC106

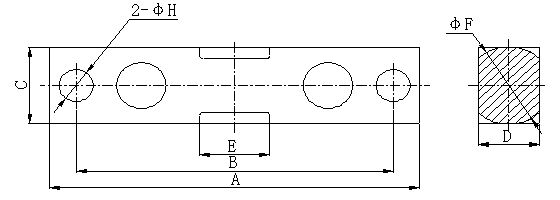

Dimensions Unit: mm:

LC106

Cap/Size A B C D E F H
1~5Klb 190.5 158.8 31 31 29 31.5 13
10~25Klb 222.2 190.5 49.3 36.5 42 50.5 20.6
35Klb 222.2 190.5 63.5 38 50 64.8 20.6
50~75Klb 393.7 292.1 75 62 82.5 75.9 33.3
100Klb 469.9 381.0 100.1 74.7 82.5 107.9 41.4



Products specification:

lLC106 load cell are available in the capacities 1Klb to 100Klb.

lSteel construction, potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

lDual shear beam and they are suitable for truck scales,hopper scales and other electronic weighing devices.



Technical Parameter:

Rated Load: 1/3/5/10/25/35/50/75/100klb
Sensitivity: (2.0±0.1%) m V/V Operating Temperature Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.03% F.S/10℃ Max. Excitation Voltage: 15V DC
Temp. Effect On Span: ±0.03% F.S/10℃ Sealing Class: IP67
Input Resistance: 750±5Ω Element Material: Alloy Steel,Stainless Steel
Output Resistance: 700±2Ω Cable: Length=L:12m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60

圣邦网站1详情页_05

Product name LC106 Truck Scale Double Ended Beam Load Cells Working Principle 1/3/5/10/25/35/50/75/100klb
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
