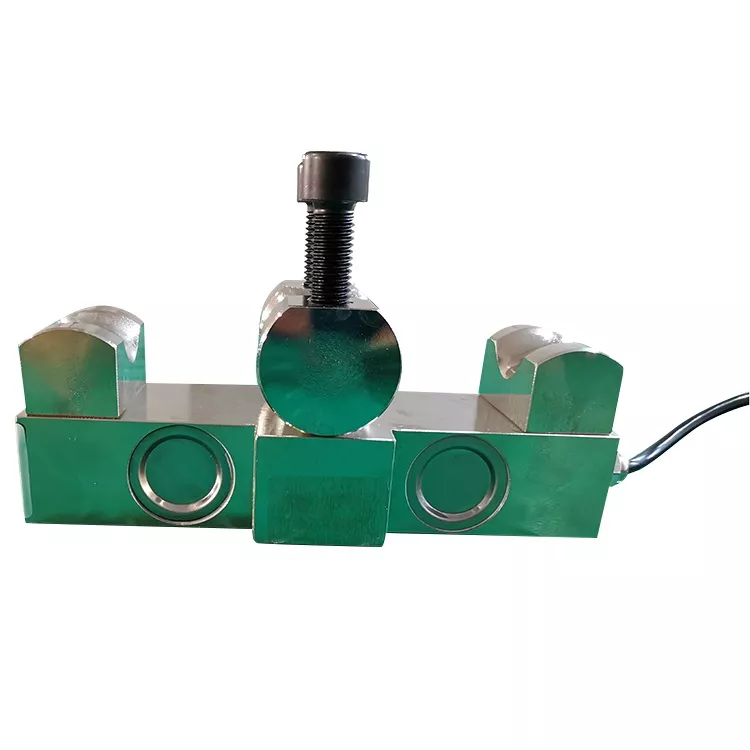

LC104B Load Limiting Device Measuring Pull Wire Rope Tension Load Cell

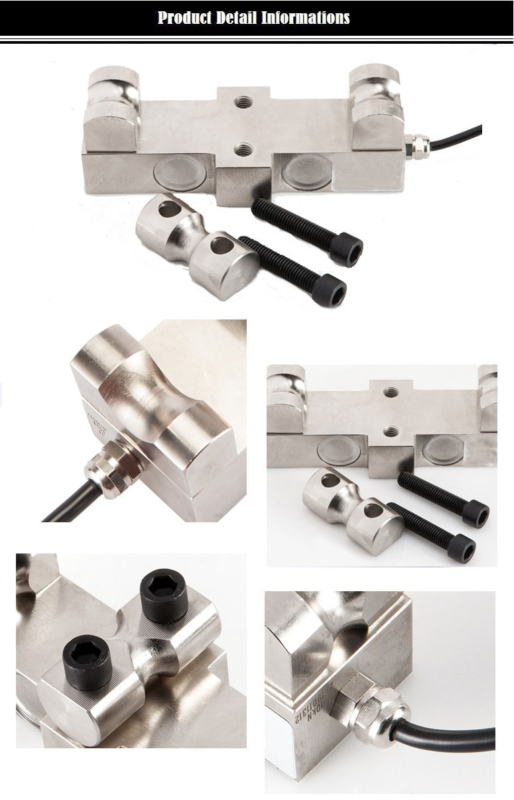

Product Description

LC104B-5

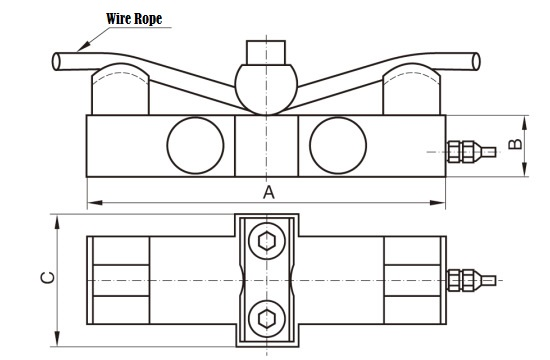

Dimension: in mm

LC104BLC104B-

Wire rope tension Wire rope Diameter Dimension(mm)
(kN) (mm) A B C
10 ⌀6~ ⌀14 180 35 60
20 ⌀10~⌀18 180 35 60
40~60 ⌀16~⌀22 180 37 60
100~140 ⌀16~⌀22 180 37 60
200/250/300 ⌀22~⌀32 240 40 80

Products specification:

This mechanical load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.

◎For load limiting in lifting systems

◎To limit the speed as a function of the load on traversing

◎To limit the effort applied for pulling

This universal load cell is recommended for its simplicity and quick lifting capability.



Technical Parameter:

Wire Rope Size: 6~40mm Operating Temperature Range: -30~+70℃
Sensitivity: (1.0±0.1%) mV/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.1% F.S Ultimate Over Load: 300%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation Vol.: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation Voltage: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: Alloy Steel, Stainless Steel
Input Resistance: 750±5Ω Cable: Length=1m
Output Resistance: 700±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Green(Output+),

Black(Input-),White(Output-)



Product name LC104B Load Limiting Device Measuring Pull Wire Rope Tension Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
