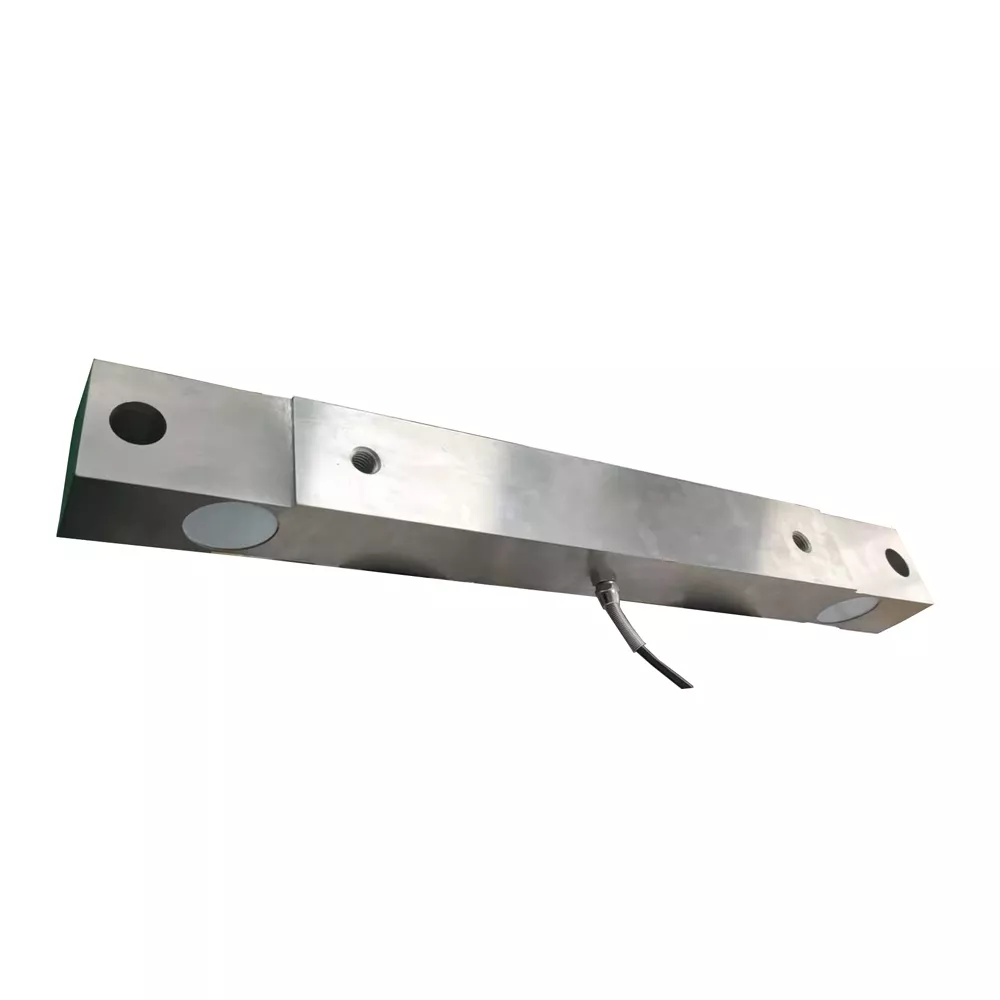

LC1002 Load Cell Small Tension Compression Testing Machine 1000kg Loadcell Weighing Sensor

Product Description

LC1002_01

Technical Parameter:



Rated Load: 2/5/10/15/20/25t
Sensitivity: (2.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 300%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Tco: ±0.02% F.S/10℃ Max. Excitation Voltage: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 380±30Ω Element Material: Alloy Steel, Stainless Steel
Output Resistance: 350±2Ω Cable: Length=L:12m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60

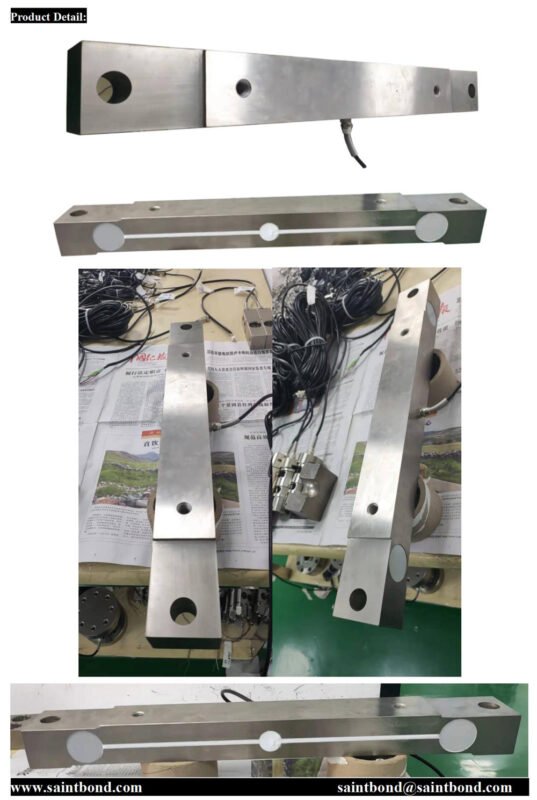

LC1002_02



Product name LC1002 Load Cell Small Tension Compression Testing Machine 1000kg Loadcell Weighing Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
