EM211 Basic Model
Standard model optimized for dynamic weighing and process control
Precision Certification: CPA 6000e
Display: 4.3″ TFT color touchscreen

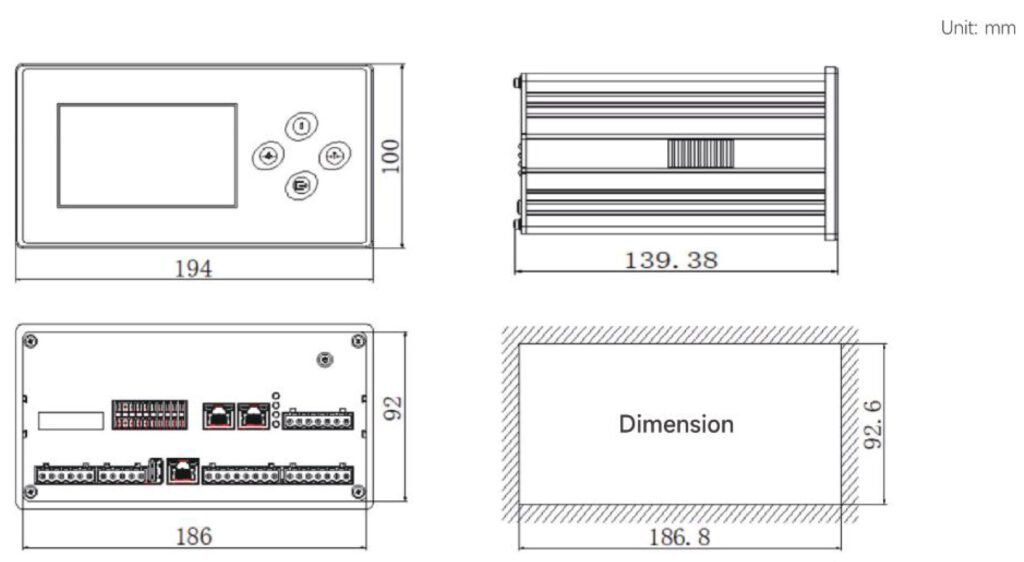

Structure: Panel-mount installation, easy integration into electrical cabinets
Communication Interfaces:
- Standard: Isolated RS232, RS485, CAN, LAN
- Analog Output: 4–20mA / 0–10V (optional)
Digital I/O: Standard 4 inputs/4 outputs, optional 8 inputs/8 outputs
PLC Communication Protocols:
Profibus-DP, CC-Link, Profinet, EtherNet/IP, Modbus-RTU, Modbus-TCP
Key Applications: Basic weighing, checkweighing, filling/dosing control, real-time logic-based automation control
EM211 Packaging Dedicated Model
Intelligent packaging controller that adapts to on-site packaging condition changes
- Intelligent self-learning function – Quickly adapts to field changes and automatically performs precise calibration
- Material level control function support
- Cumulative display and printing function
- 2-stage/3-stage speed control – Improves packaging speed and precision
- Photocoupler-isolated set output control
- Supports various communication interfaces
EM211 Checkweighing Dedicated Model
Inspection-dedicated model specialized for high-speed sorting and inspection control
- Real-time feedback on photosensor switches, weighing status, etc.
- Two operating modes: Check mode / Sorting mode
- Automatic belt speed recognition and control
- Intelligent logic detection function – Automatic alarm and recovery for abnormal situations during inspection
