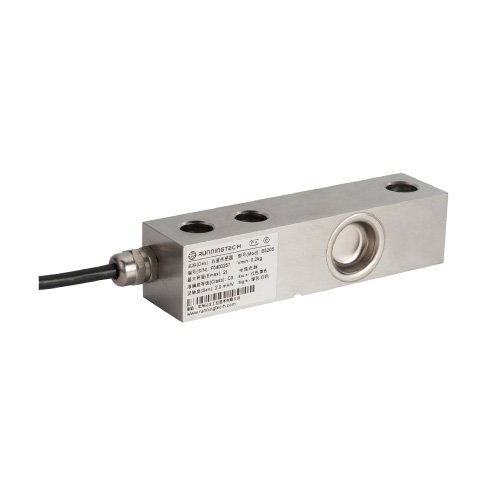

Models
B510A-50kg, B510A-100kg, B510A-250kg, B510A-0.5t, B510A-1t, B510A-2t, B510A-3t, B510A-5t, B510A-7.5t, B510A-10t
B510A-100lb, B510A-250lb, B510A-500lb, B510A-1klb, B510A-2.5klb, B510A-4klb, B510A-5SE, B510A-5klb, B510A-10klb, B510A-15klb, B510A-20klb
Features
- Capacity: 50 kg–10 t / 100 lb–20 klb
- Material: Alloy steel, optional stainless steel
- Type: Shear Beam
- Protection Rating: IP67 / IP68
Suitable for floor scales, medical bed scales, and other electronic weighing devices.
Dimensions
| Capacity(inches) | L | L1 | L2 | L3 | L4 | D1 | D2 | H | H1 | W | W1 | M |
| 100~500lb | 5.12 | 0.62 | 1.00 | 3.00 | 2.13 | 0.51 | 0.53 | 1.25 | 0.62 | 1.25 | 1.45 | 1/2-20 UNF-2B |
| 1,000~4,000/5,000SE | 5.12 | 0.62 | 1.00 | 3.00 | 2.13 | 0.51 | 0.53 | 1.25 | 0.62 | 1.25 | – | 1/2-20 UNF-2B |
| 5,000~10,000lb | 6.75 | 0.75 | 1.50 | 3.75 | 3.04 | 0.77 | 0.81 | 1.50 | 0.87 | 1.50 | – | 3/4-16 UNF-2B |
| 15,000~20,000lb | 6.75 | 1.00 | 2.00 | 4.75 | 4.00 | 1.03 | 1.03 | 2.00 | 1.00 | 2.00 | – | 1-14 UNS-2B |
| Capacity(mm) | L | L1 | L2 | L3 | L4 | D1 | D2 | H | H1 | W | W1 | M |
| 50~250kg | 130.0 | 15.8 | 25.4 | 76.2 | 54.2 | 13.0 | 13.5 | 31.8 | 15.8 | 31.8 | 36.8 | M12*1.75 |
| 500~2,000kg | 130.0 | 15.8 | 25.4 | 76.2 | 54.2 | 13.0 | 13.5 | 31.8 | 15.8 | 31.8 | – | M12*1.75 |
| 3,000~5,000kg | 171.5 | 19.1 | 38.1 | 95.3 | 77.2 | 19.5 | 20.6 | 38.1 | 22.0 | 38.1 | – | M18*1.50 |
| 7,500~10,000kg | 222.3 | 25.4 | 50.8 | 120.7 | 101.6 | 26.0 | 26.0 | 50.8 | 25.4 | 50.8 | – | M24*2.00 |
