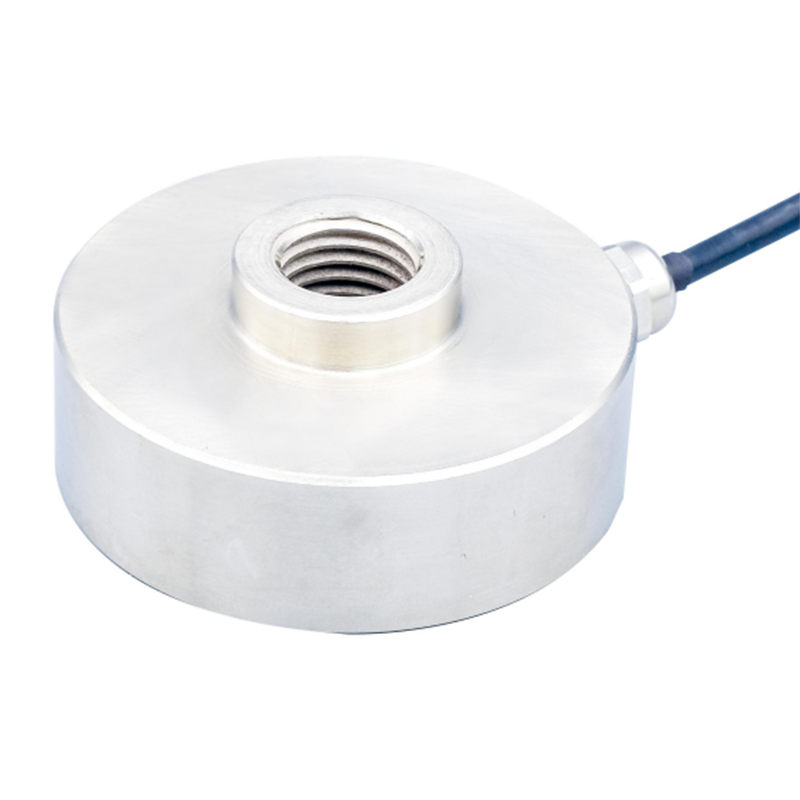

RJ-8600-2T Spoke type Load Cell
Technical Parameters
| Measuring Range | t | 2 |
| Sensitivity | mV/V | 1.5±0.2 |
| Accuracy | %FS | ≤±0.1 |
| Creep | %FS | ≤±0.02 |
| Input Impedance | Ω | 760±30 |
| Output Impedance | Ω | 700±10 |
| Insulation Resistance | M Ω | ≥5000 (100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effect on Sensitivity | %FS/10℃ | ≤0.05 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.05 |
| Compensation Temperature Range | ℃ | -10～+60 |
| Working Temperature Range | ℃ | -20～+80 |
| Recommended Excitation Voltage | V | 6～12 |
| Permissible Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection Level | IP67 | |
| Cable Specification | mm | Ф5 |
| Cable Length | m | 2 |
| Material | Alloy Steel Material |

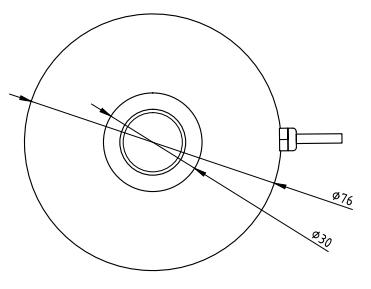

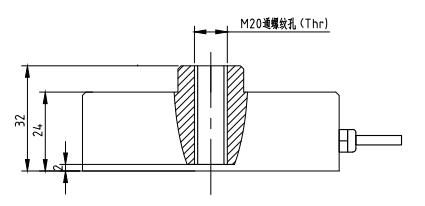

Dimensions (mm)

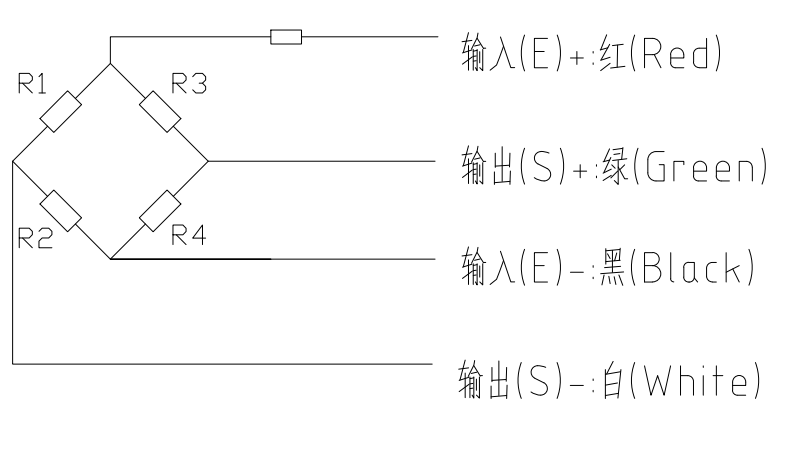

Circuit Connection
