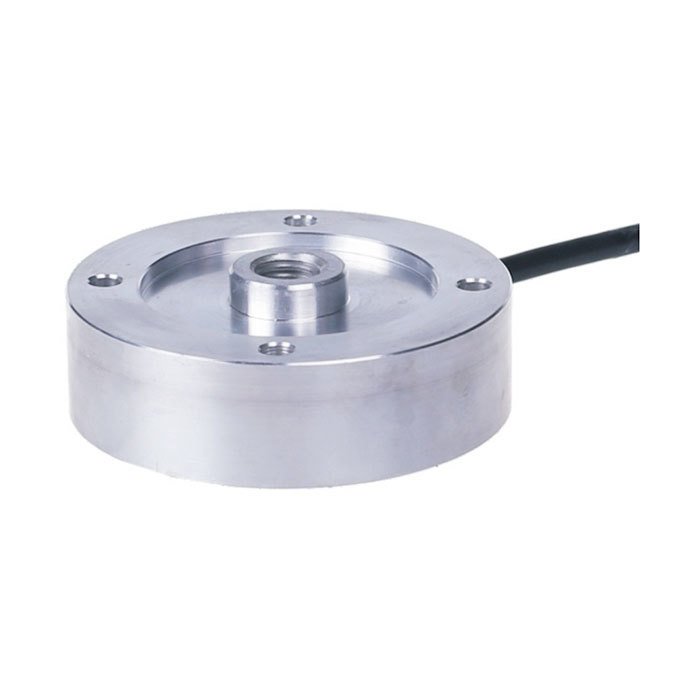

RJ-6610 Spoke type Load Cell
Technical Parameter
|
Capacity
|
Kg
|
10/50/100/200
|
|
Sensitivity
|
mV/V
|
1.5±0.2
|
|
Accuracy
|
%FS
|
≤±0.1
|
|
Creep(15min)
|
%FS
|
≤±0.02
|
|
Input Resistance
|
Ω
|
750±30
|
|
Output Resistance
|
Ω
|
700±10
|
|
Insulation Resistance
|
MΩ
|
≥5000(100VDC)
|
|
Zero Balance
|
%FS
|
≤±1
|
|
Temperature Effects on Span
|
%FS/10℃
|
≤0.05
|
|
Temperature Effect on Zero
|
%FS/10℃
|
≤0.05
|
|
Rated Temperature Range
|
℃
|
-10~+60
|
|
Operating Temperature Range
|
℃
|
-20~+80
|
|
Proposed Excitation Voltage
|
V
|
6~12
|
|
Allowed Excitation Voltage
|
V
|
18
|
|
Safe Overload
|
%FS
|
120
|
|
Ultimate Overload
|
%FS
|
150
|
|
Protection
|
IP65
|
|
|
Cable specification
|
mm
|
Ф5
|
|
Cable length
|
m
|
2
|
|
Material
|
Aluminum Alloy
|

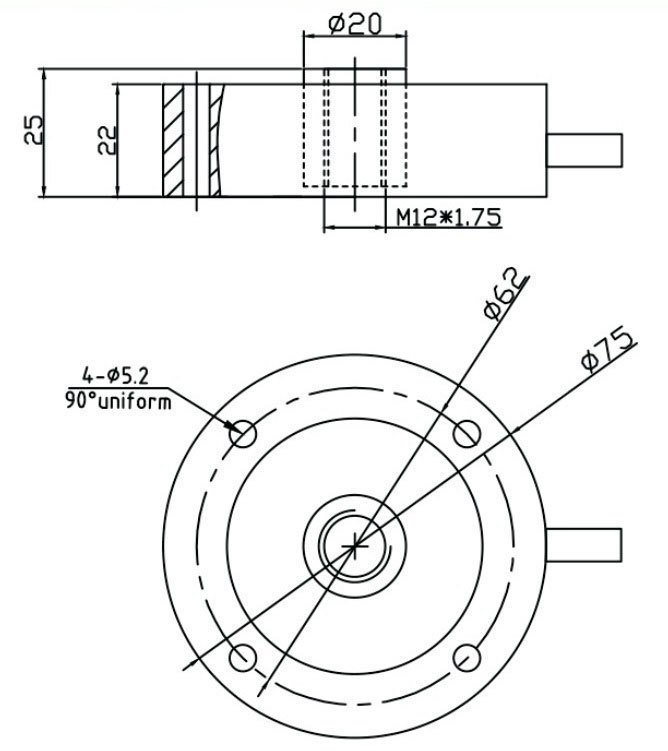

Overall dimensions(mm)

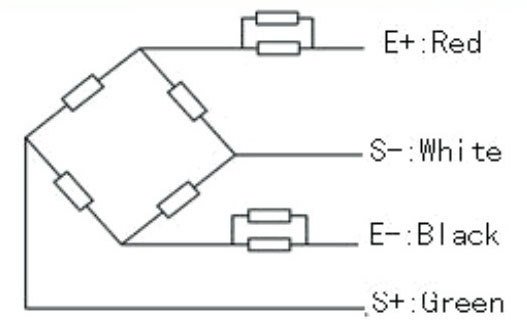

Circuit connection

Cable specifications
Cable specifications:Ф5mm 4-core black shielded cable
Cable length:1m
