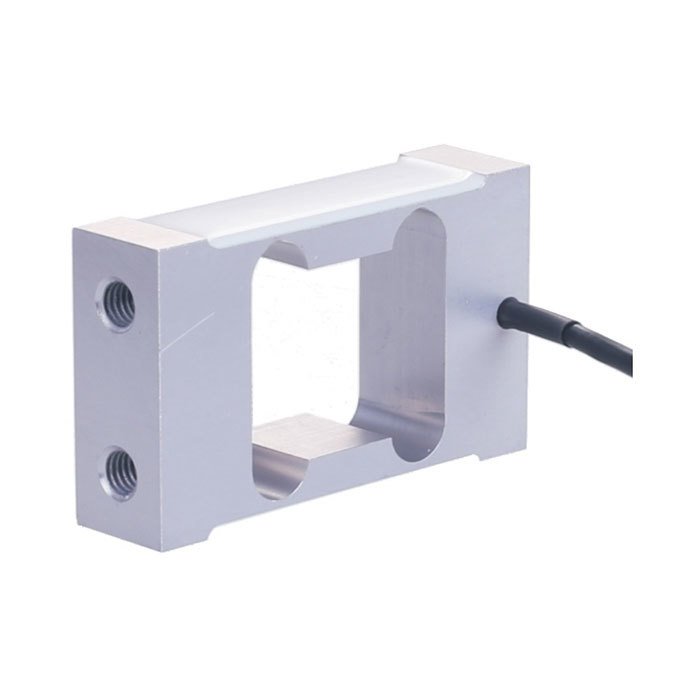

RJ-6532 Balance Load Cell
Technical Parameter
|
Capacity
|
Kg
|
4/5/6/8/10/15/20/30
|
|
Sensitivity
|
mV/V
|
2.0±0.2
|
|
Accuracy
|
%FS
|
±0.02
|
|
Creep（15min)
|
%FS
|
±0.02
|
|
Input Resistance
|
Ω
|
406±20
|
|
Output Resistance
|
Ω
|
350±5
|
|
Insulation Resistance
|
MΩ
|
≥5000（100VDC）
|
|
Zero Balance
|
%FS
|
±1
|
|
Temperature Effects on Span
|
%FS/10℃
|
±0.017
|
|
Temperature Effect on Zero
|
%FS/10℃
|
±0.017
|
|
Rated Temperature Range
|
℃
|
-10～+60
|
|
Operating Temperature Range
|
℃
|
-20～+80
|
|
Proposed Excitation Voltage
|
V
|
5～12
|
|
Allowed Excitation Voltage
|
V
|
18
|
|
Safe Overload
|
%FS
|
120
|
|
Ultimate Overload
|
%FS
|
150
|
|
Protection
|
IP65
|
|
|
Cable specification
|
mm
|
Ф4
|
|
Cable length
|
m
|
0.3
|
|
Material
|
Aluminum Alloy
|

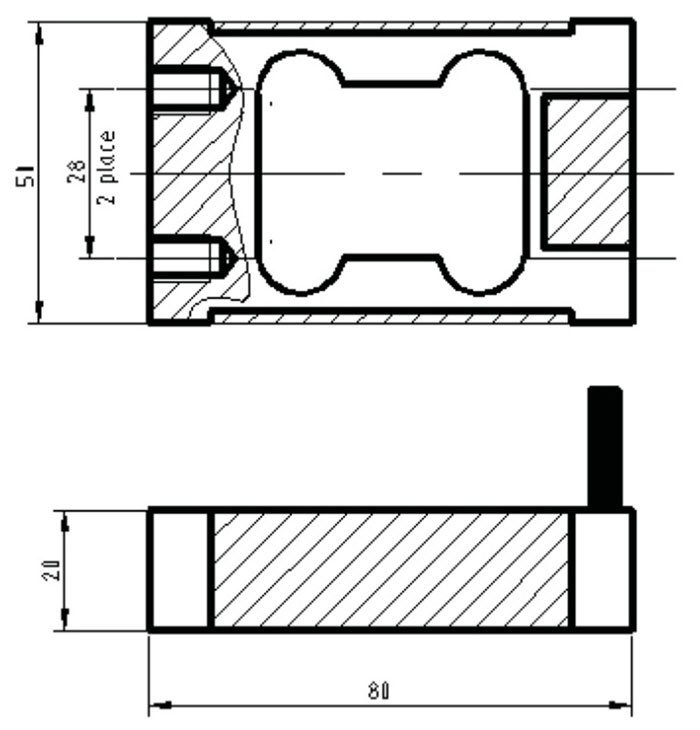

Overall dimensions(mm)

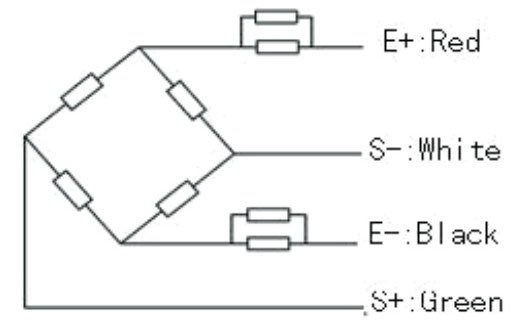

Circuit connection
Cable specifications
Cable specifications：Ф4mm 4-core black shielded cable
Cable length：50cm
