Dimension
Parameter
Features and Applications
High precision and strong ability to resist partial load;
Easy to install;
Customizable specifications;
Robot arm precision control, curved surface grinding and polishing, machining center precision carving processing, medical equipment precision testing

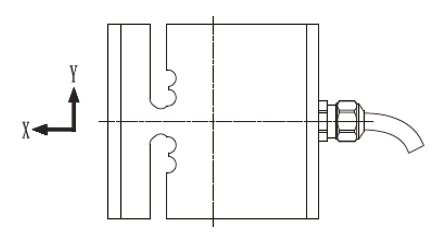

Load Direction
Wiring Code
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
Nickel plated alloy steel
Various industrial weighing systems such as testing machines, truck scales, hopper scales, etc.
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
The ZMHB double-ended mounting provides good restraint to possible movement of the tanks and, in many cases, eliminates the needs for check rods. The shear beam design gives excellent performance for high capacity loading. The ZMHB is constructed of alloy steel and is potted to IP67 providing excellentt protection against moisture and humidity.
Nickel plated alloy steel
Various industrial weighing systems such as testing machines, truck scales, hopper scales, etc.
This product features a ring-shaped design that provides fast response and long-lasting static accuracy. It is a passive type requiring no external power and can be used in conjunction with equipment such as charge amplifiers.
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Both compression and tension
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Both compression and tension
This product enables dynamic measurement with a fast response speed and maintains static calibration stability over time. It has minimal sensitivity error for both tension and compression forces, making it ideal for applications requiring precise force measurement.
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Stainless steel construction
