Double round head rocker design, fast dynamic response;
Protection grade IP68, suitable for weighing in heavy environments such as truck scales and railroad scales.
Material: stainless steel Laser welding seal
definition: Column structure anti-overload Strong impact resistance Rated load
Dimensions
Parameters
Features and Applications

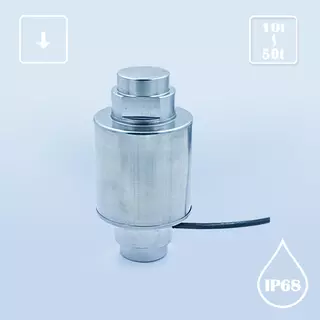

Cylindrical load cell, stainless steel material, laser welding sealing;
Double round head rocker design, fast dynamic response;
Protection grade IP68, suitable for weighing in heavy environments such as truck scales and railway scales;
The column structure is resistant to overload, strong impact resistance, and rated load.
Load Direction
Wiring Code
The extended version of the column sensor features a stainless steel shell and cover compared to the 110E-JD, and is mechanically fastened to prevent disassembly. The installation height can reach 188 and 214 with additional indenter.
500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.
The extended version of the column sensor has a reduced height compared to the 110E, but the additional ram and lower mounting dimensions are maintained. The installation height can reach up to 158.
10000kN Or Customized Column Type Load Cell FA438 is one of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA438 can measure load from 500kN to 10000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, it supports IP66 or customized.
0.5kN 1kN 2kN 3kN 5kN 10kN 20kN 50kN 100kN ≤0.1%F.S. Stainless Steel Column Type Load Cell is a model of Column Type Load Cell, its material is Stainless steel, it could measure load 0.5kN, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 50kN and 100kN, its rated output is 1.5±10%mV/V, zero balance is ±0.02mV/V, its weight is 0.8kg or 2kg, and its creep(30min)≤0.1%F.S..
0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.
Column sensor basic model, with additional pressure head, the installation height can reach 188, 214.
5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.
Column sensor basic model, with additional pressure head, the installation height can reach 188, 214.
The column sensor has been upgraded from the 110E-JD model with a stainless steel exterior and cover, a mechanically fastened design to prevent disassembly, and an extended configuration that allows installation heights of 188 mm and 214 mm when additional indenters are used.
50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.
This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.
