T120 Compression Load Cell
● Features and Applications
Low height, small deformation and small size;
Stainless steel material, high precision;
Protection grade: IP68 can be used outdoors or in harsh environments;
High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;
Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;
It is also often used for weighing storage, feed tanks and reactors, with low height and good stability

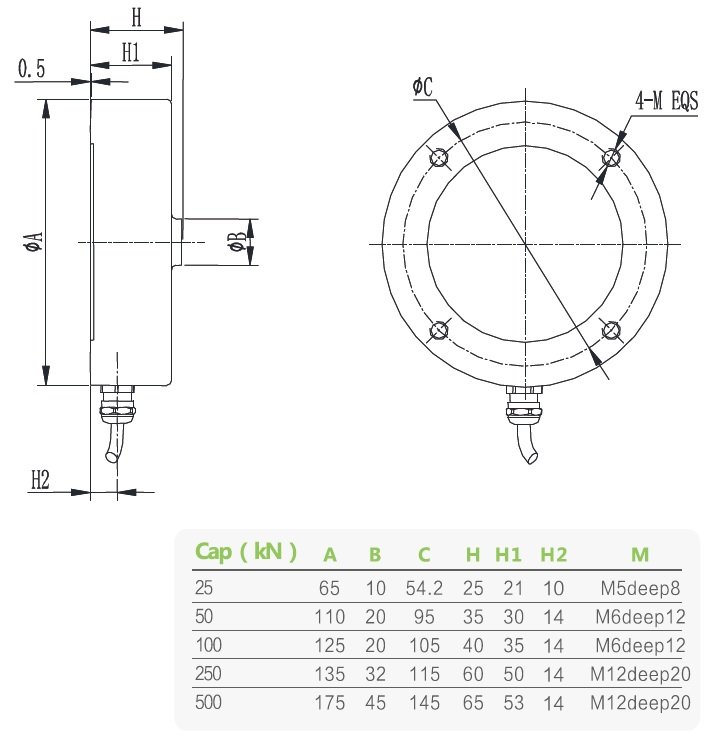

● Dimension
● Parameter
| Capacity |
25,50,100,250,500 kN |
| Sensitivity |
2.0 ± 1 ％ mV / V |
| Zero Balance |
± 0.05 mV / V |
| Non-linearity |
0.05% F.S. |
| Hysteresis Error |
0.03% F.S. |
| Repetition |
0.02% F.S. |
| Creep (30 min) |
0.02% F.S. |
| Temp. Effect on sensitivity (TKc) |
0.03 ％ F.S./10℃ |
| Temp. Effect on zero balance (TKo) |
0.03 ％ F.S./10℃ |
| Input Resistance |
385/780 ± 20Ω |
| Output Resistance |
350/700 ± 10 Ω |
| Insulating Resistance |
≥5000 MΩ / 100VDC |
| Excitation Voltage |
5 ~ 15 V |
| Max. Excitation Voltage |
20 V |
| Compensation Range |
-10 ~ 60 ℃ |
| Service Temperature Range |
-20 ~ 80 ℃ |
| Limit load (EL) |
150% F.S. |
| Breaking load (Ed) |
200% F.S. |
| Cable Size |
φ5 × 5000 mm (25 ~ 100 kN)
φ5 × 10000 mm (250 ~ 500 kN) |
| Material (Measuring element) |
Stainless steel |
| IP Class |
IP68 |
● Load Direction ● Wiring Code
