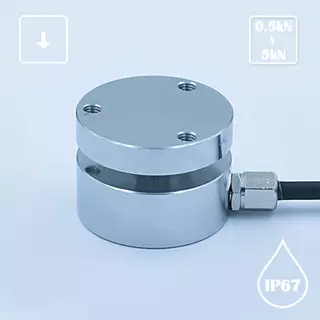

R403 Flat Compression Column Force Sensor
● Features and Applications
Low height, small deformation and small size;
Stainless steel material, high temperature can be customized;
Protection grade: IP67 can be customized;
High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;
Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;

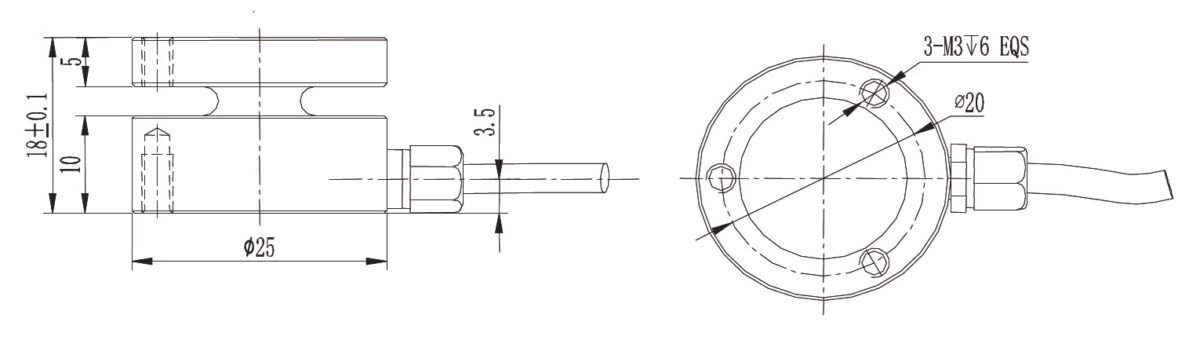

● Dimension
● Parameter
| Capacity |
0.5,1,2,3,5 kN |
| Sensitivity |
1.5 ± 20 ％ mV / V |
| Zero Balance |
± 0.05 mV / V |
| Non-linearity |
0.5% F.S. |
| Hysteresis Error |
0.5% F.S. |
| Repetition |
0.2% F.S. |
| Creep (30 min) |
0.1% F.S. |
| Temp. Effect on sensitivity (TKc) |
0.05% F.S./10℃ |
| Temp. Effect on zero balance (TKo) |
0.05% F.S./10℃ |
| Input Resistance |
800 ~ 1100Ω |
| Output Resistance |
800 ~ 1100 Ω |
| Insulating Resistance |
≥5000 MΩ / 100VDC |
| Excitation Voltage |
5 ~ 15 V |
| Max. Excitation Voltage |
20 V |
| Compensation Range |
-10 ~ 60 ℃ |
| Service Temperature Range |
-20 ~ 80 ℃ |
| Limit load (EL) |
150% F.S. |
| Breaking load (Ed) |
200% F.S. |
| Cable Size |
φ3 × 3000 mm |
| Material (Measuring element) |
Stainless steel |
| Weight (G), approx. |
0.1kg |
| IP Class |
IP67 (customizable) |
● Load Direction ● Wiring Code
