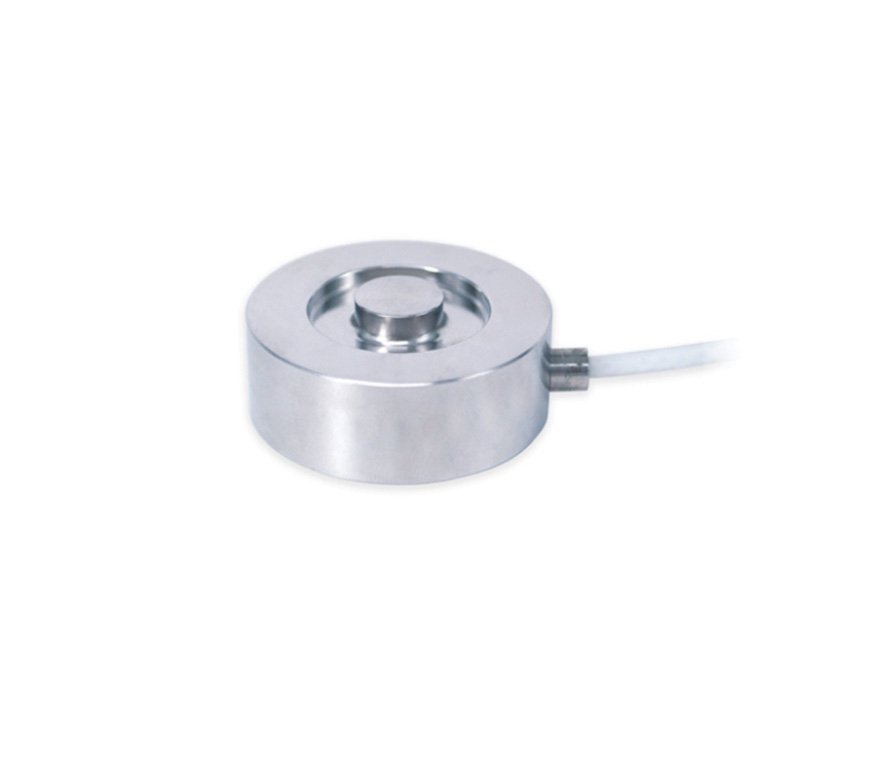

NS-TH18 Series Load Cell

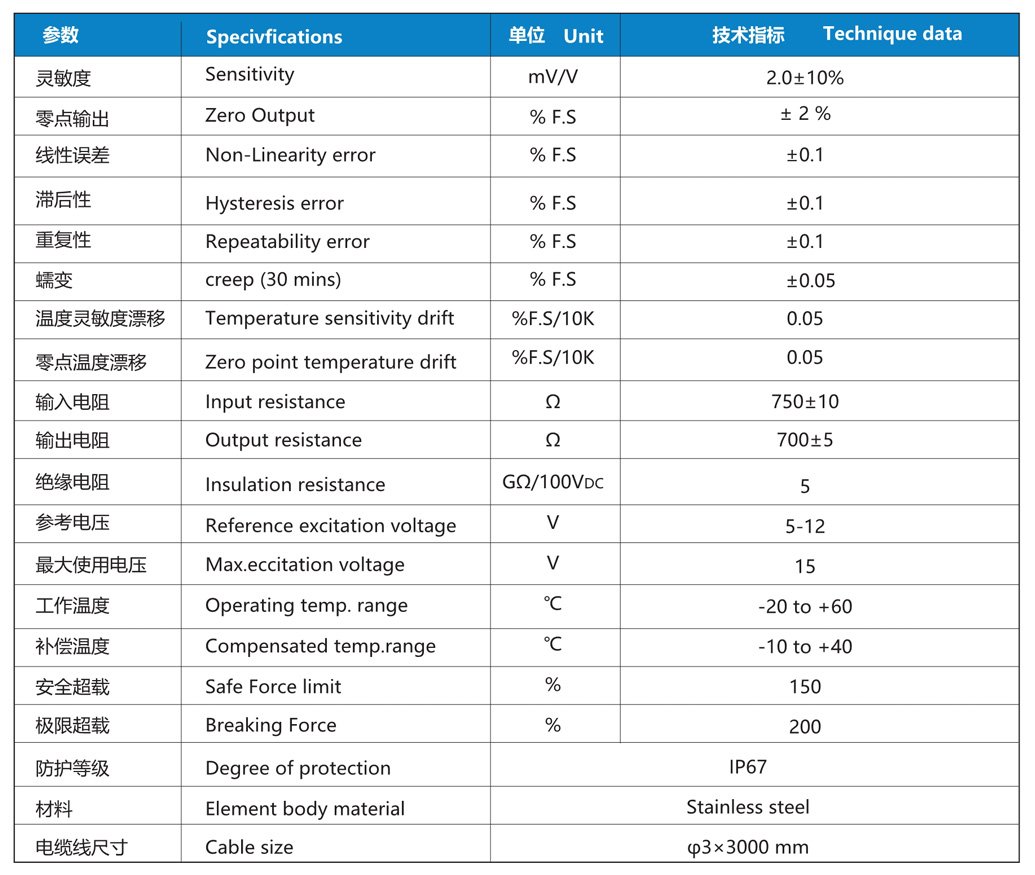

Parameter

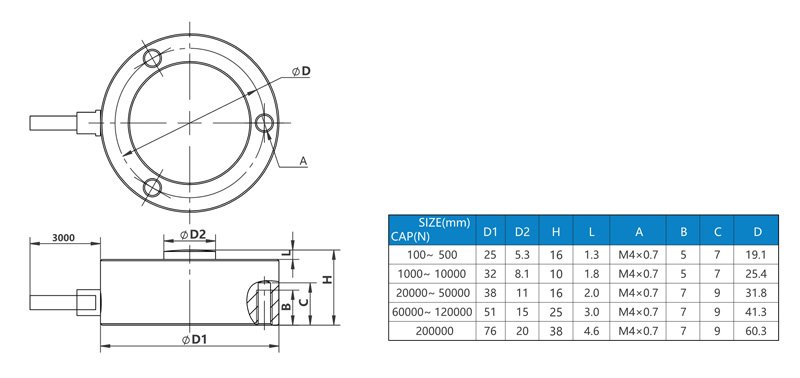

Dimensions
Wiring Definition
Selection table
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
Product Numbers:TAS511
Product description:Features:
Capacity ： 0~1000kg
Material: stainless steel
Type: compression and tension type
Defend grade: IP67.
Application: the compression and tension measurement in medical and weighing system.
- Rail-type installation is convenient
- Input reverse polarity protection and output protection
- Through 4000V EMC. Strong anti-interference ability
- Long-term stability and high precision
- Can be equipped with various strain gauge sensors
The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.
Features:
Capacity 200kg-60t
High accuracy
Low profile
Nickel plated alloy steel IP67
Optional features:
Hermetically sealed available
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
The sensor can meet the test requirements of a wide range of sensors, with a range of 100kN~200kN.
Product description:
Capacity ：30~1000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used for electronic truck scales, hopper scales, automotive testing equipment other electronic weighing or force measuring fields and other automation fields.
Widely used in testing machines, truck scales, hopper scales, various industrial weighing systems.
Material: stainless steel, alloy steel
Size: Spoke type, Other ranges can be customized
