Wheel shaped load cell pancake transducer NF120A
Features
Wheel shaped load cell pancake transducer NF120A is based on foil strain gauge technology with mV signal output. The shear web load cell can measue loads in either tension or compression. The pancake load cell has five measuring ranges, respectively 0-50KG,0-100KG,0-200KG,0-500KG,0-1000KG. The force sensor can be adaptable to various applications.
- Small size
- Tension and compression bidirectional
- High precision
Applications
- Testing machine
- Industrial weighing system
- Hopper scale

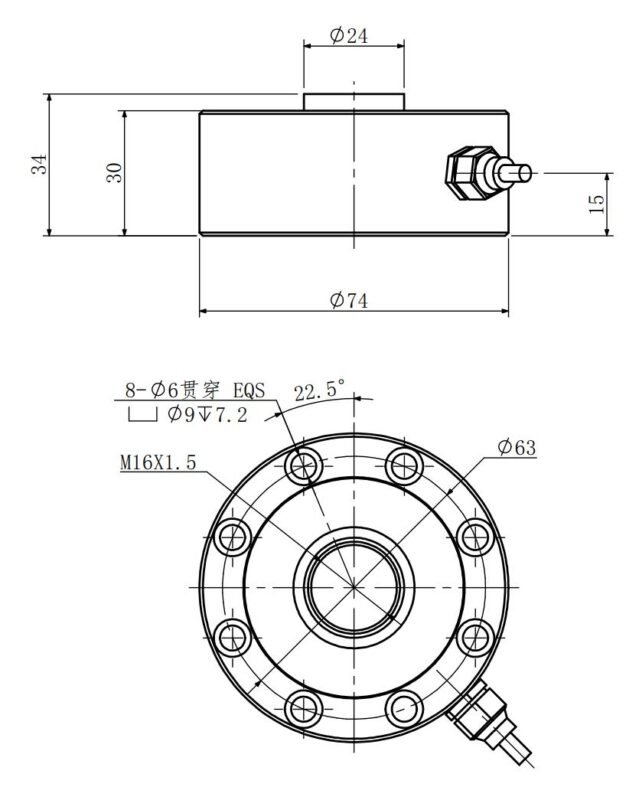

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000KG |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±1% mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.03%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ6×5000mm |
