Weighing modules pancake load cell NF525
Features

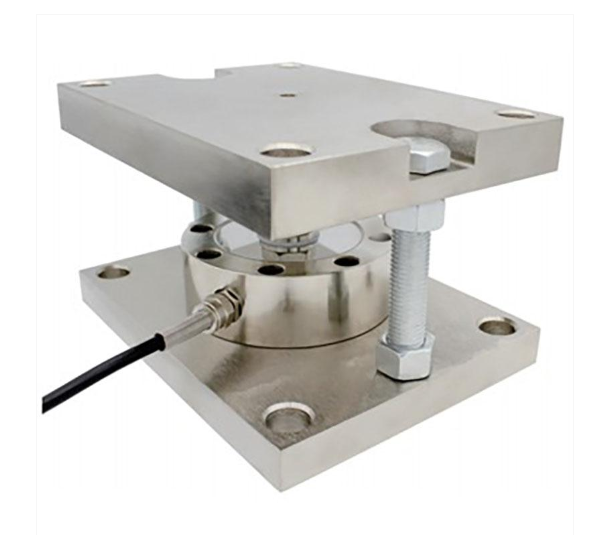

Weighing modules pancake load cell NF525 can be made of either stainless steel or alloy steel. The weighing modules force sensor based on strain gauge technology has a range of 1-60t. The weighing modules load cell can be installed in a variety of ways and can be customization according to customer needs.
- High stability
- Stable anti-interference signal
- Easy Installation
Applications
- Chemical, pharmaceutical and food Industry
- Industrial measurement
- Reaction kettle, batching tank, hopper
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 1-60T |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.02mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on output | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 700±5Ω |
| Output impedance | 700±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ5×5000mm |
| Material | Stainless Steel/Alloy steel |
| IP Class | IP65 |
