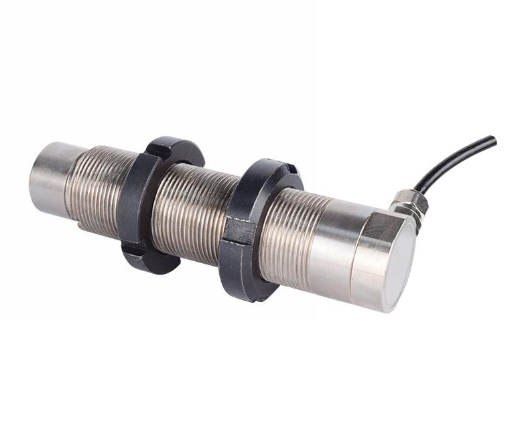

Tension pick-up NF907
Features
Tension pick-up NF907 are designed to accurately measure the amount of force or tension being exerted on a specific point, wire, rope, or other load-bearing component. The tension sensor typically consist of strain gauges, which are thin, flexible, and sensitive resistance elements that change their electrical resistance when subjected to applied stress or deformation.
- Convenient plug-in connection
- High precision
Applications
- Wire and cable production
- Medical devices
- Material testing

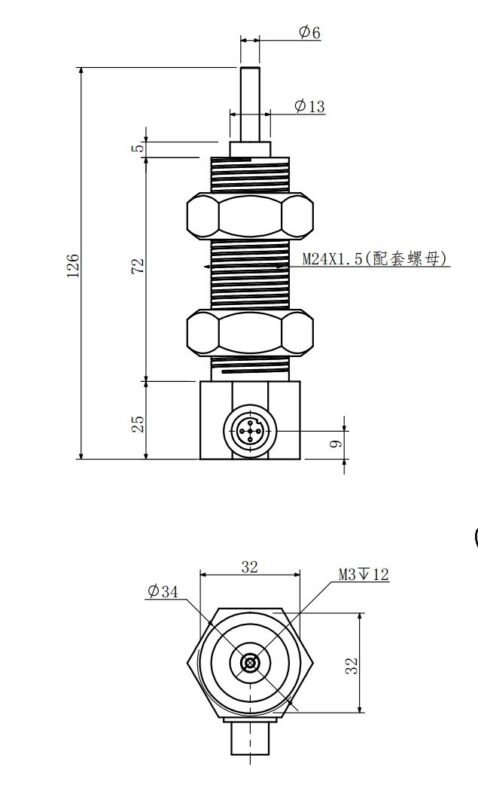

Mounting Dimension
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50N |
| Rated output | 0.8±10%mV/V |
| Zero balance | ±0.05mV/V |
| Creep（30min） | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –10~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Material | Stainless steel/Alloy steel |
