Tension pick-up load cell NF905
Features
Tension pick-up load cell NF905 is used to measure the tension value of the coil in the tension control process. When the tension sensor is subjected to external pressure, the resistance value of the strain gauge will also change, and the amount of the change value will be proportional to the size of the tension.
- Mini size
- High precision
Applications
- Pharmaceutical industry
- Chemical industry the
- Food industry

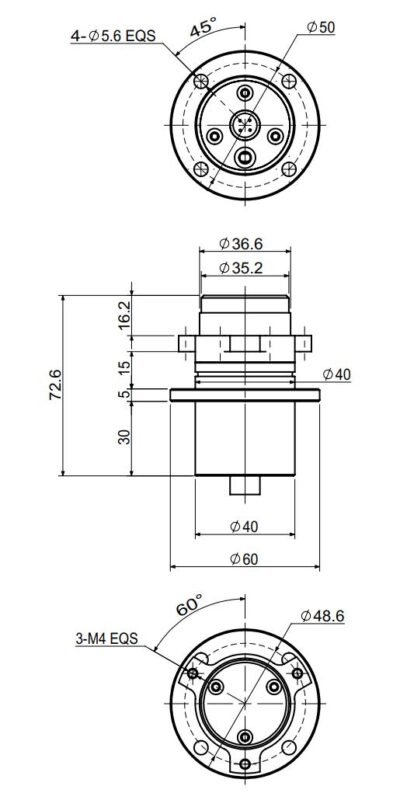

Mounting Dimension
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 38N(Range can be customized) |
| Rated output | 0.6±20%mV/V |
| Zero balance | ±2%mV/V |
| Creep（30min） | ≤0.05%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.3%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350±10Ω |
| Output impedance | 300±5Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~40℃ |
| Operation temp range | –20~60℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Material | Aluminum alloy |
| Weight | 0.5kg |
