Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

• Capacity: 0-100T
• Sensitivity: 1.5±0.05mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.

The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.

Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing.

Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.

SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.

The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.

SC9N은 무거운 계량 어플리케이션에 이상적인 컬럼형 폼팩터로 제작된 압축 로드셀입니다. 5톤에서 30톤까지 다양한 용량으로 제공되며, 대칭형 폼팩터로 설치 및 장착이 간편합니다.

The SC9N is a compression load cell built in the a column style form factor ideal for heavy weighing applications. Available in capacities from 5 Tonnes to 30 Tonnes, its symmetric form factor allow for easy installation and mounting.

Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.

15-100t IP68 Material Weighing Control For Large Tonnage Tank Applied Weighing Module FA812 is a model of our brand FIBOS FA8-Series, Weighing Module FA812 can be used to measure load ranges from 15t,20t,30t,50t to 100t capacity, it is easy to install and maintan, it supports bolt to avoid overturn, its spherical fittings keep the vertical weighing state.

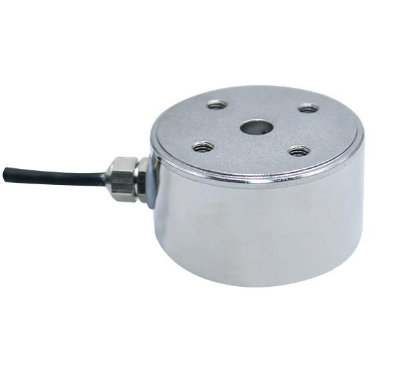

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.
