High Capacity Load Button micro pressure sensor NF110
Features

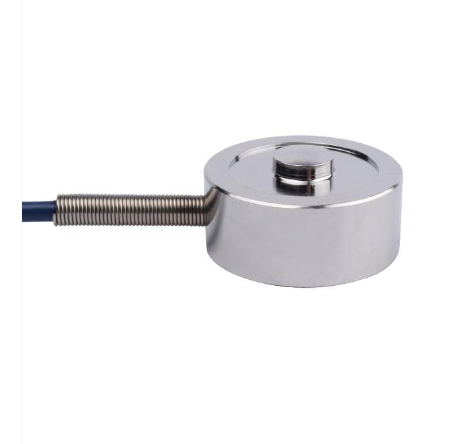

High Capacity Load Button micro pressure sensor NF110 is suitable for larger range testing. The high capacity load button offers button load cells in six capacity options that measure compressive loads from 500N to 20KN. The mini pressure sensormeasures loads in compression applications.
- Micro size
- High Capacity Load Button
- High frequency dynamic response
Applications
- robotics
- medical testing
- New energy product assembly
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500kg,1,2,3T |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±10Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×3000mm |
