Cylindrical type sensor pull pressure load cell NF402
Features

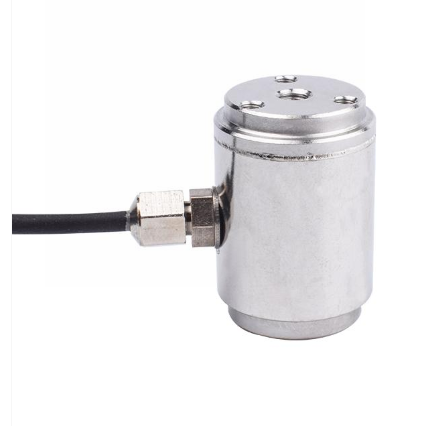

Cylindrical type sensor pull pressure load cell NF402 is made of stainless steel, sealed, welded, oil-resistant, water-resistant, and corrosion-resistant. The column load cell is designed in a circular shape for easy installation and use. The tension and compression force transducer is a explosion-proof product, which can be used in harsh environments and hazardous situations.
- Small size
- High dynamic response frequency
- High precision
Applications
- Testing machine
- Industrial weighing system
- Assembly force monitoring
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 10,20,30,50,500,100,200,300,500N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 650/350±10Ω |
| Output impedance | 650/350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3000mm |
