Annular load cell ring force sensor NF109
Features
Annular load cell ring force sensor NF109 is small in size. The donut load cell offers 0-50N,0-100N,0-200N,0-500N,0-1000N five different measuring ranges to choose from. The washer type load cell is equipped with with a 3-meter-long shielded cable. The donut load cell is made of stainless steel and can be used for most industrial environments.
- Micro size
- High precision
- High frequency dynamic response frequency
Applications
- Bolt loading
- Automatic locking screw machine
- Rolling mill systems

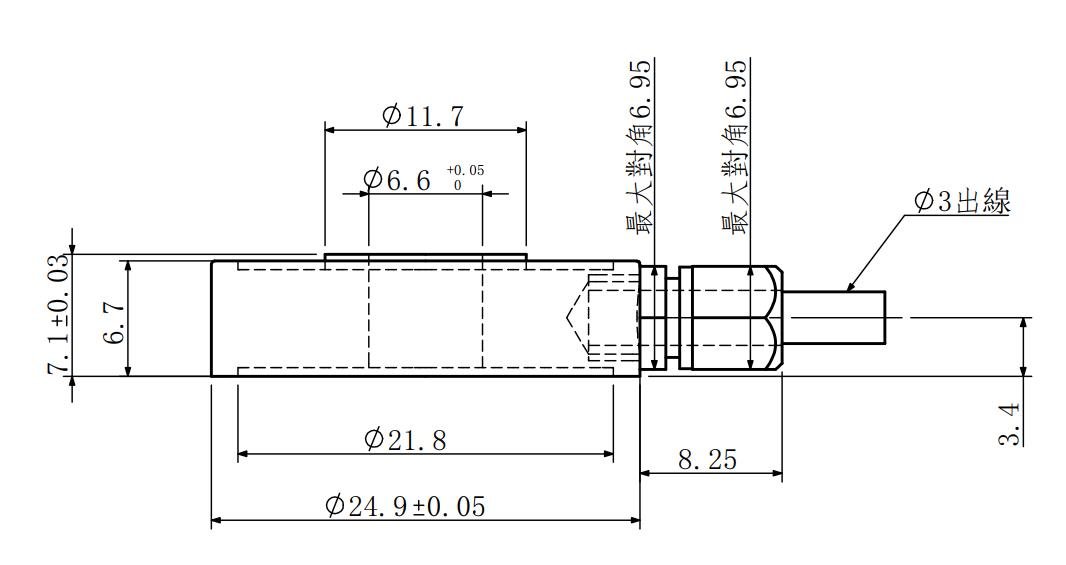

Mounting Dimension
Load Direction

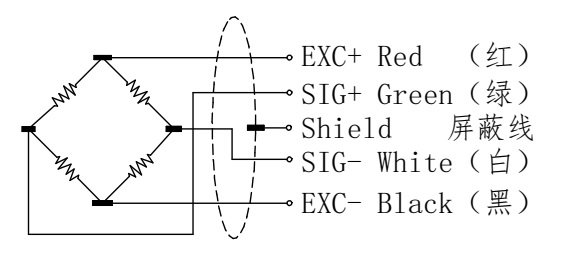

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000N |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±5%mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±10Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ3×3m |
| Material | Stainless Steel |
