Models
S510-0.5klb, S510-1klb, S510-2klb, S510-3klb, S510-5klb, S510-10klb
Features
- Capacity: 500 lb–10 klb
- Material: Alloy steel (with imperial thread)
- Type: S-Beam
- Protection Rating: IP66 / IP68
Suitable for process weighing in hopper, silo, and tank scales, as well as for force measurement applications.
Dimensions
| Capacity | L | H | W | W1 | M |
| 500~1,000 | 2.00 | 3.00 | 0.75 | 1.03 | 1/2-20 UNF-2B |
| 2,000~3,000 | 2.00 | 3.00 | 1.00 | 1.28 | 1/2-20 UNF-2B |
| 5,000 | 3.00 | 4.25 | 1.00 | – | 3/4-16 UNF-2B |
| 10,000 | 3.50 | 4.75 | 1.00 | – | 3/4-16 UNF-2B |

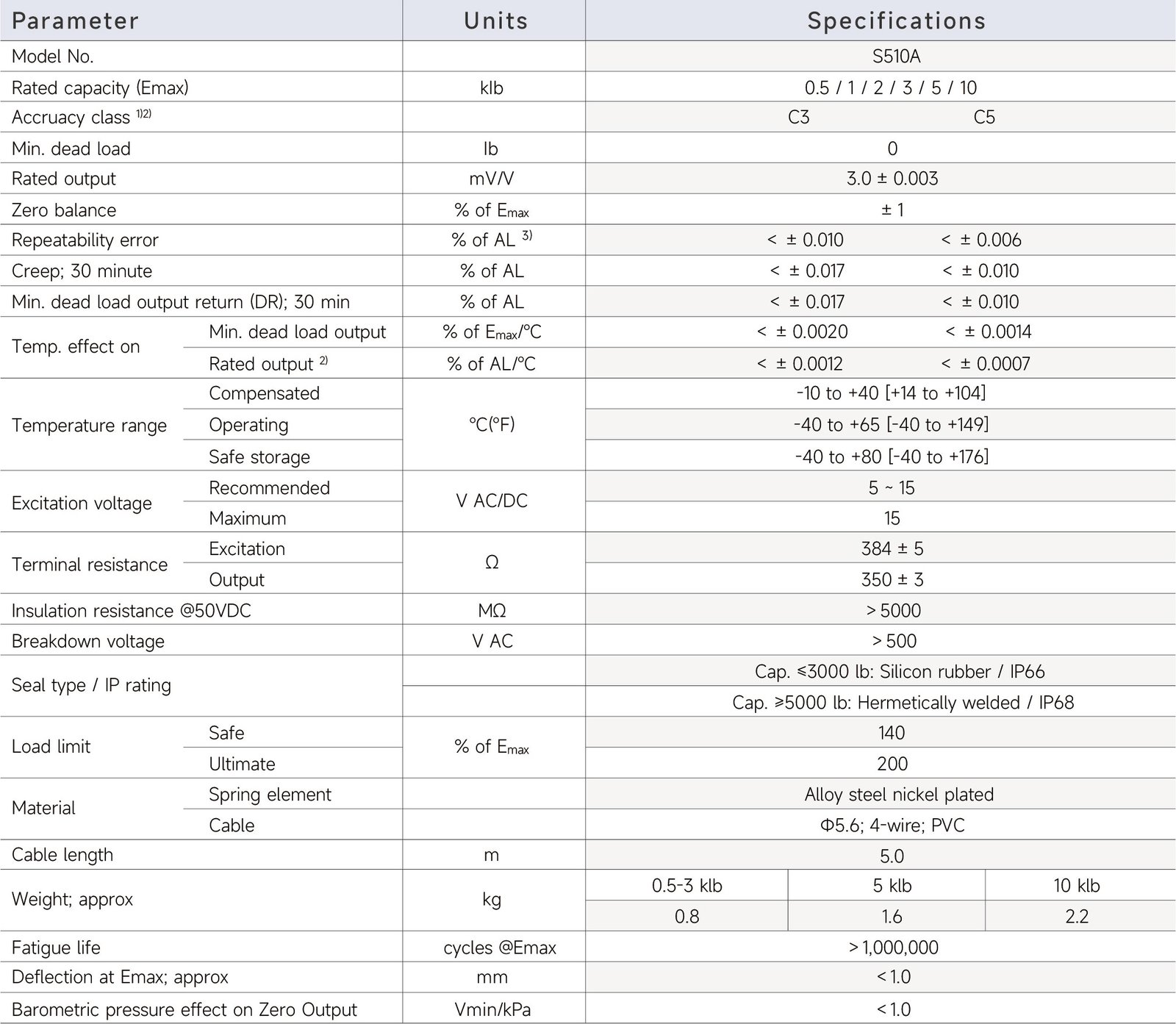

Specifications
