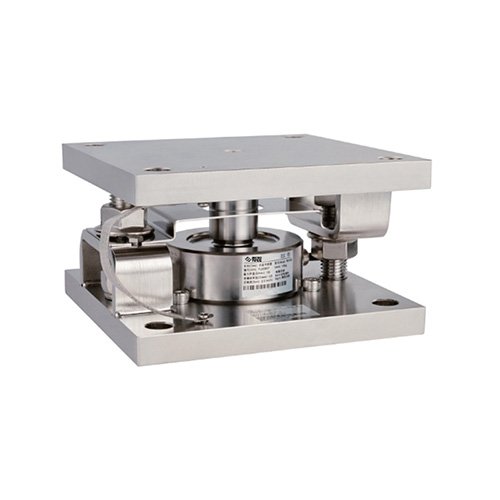

Models
MR-1S-1t, MR-1S-2.5t, MR-1S-5t, MR-1S-10t, MR-1S-15t, MR-1S-20t, MR-1S-30t, MR-1S-50t, MR-1S-100t
Key Features
- Low-Profile Design
- A structure suitable for environments with limited installation space.
- Top Plate with Blind Hole
- Designed for easy mounting and load application.
- Integrated Height-Adjustable Screw
- Overload and Anti-Overturn Protection
- Capacity Range per Module: 2.5 tons to 100 tons
- Suitable for measuring the weight of various industrial equipment.
- Choice of Materials
- Available in Alloy Steel or Stainless Steel.
- Integrated Assembly with MR-1S Compression Load Cell
- Ensures high-precision weighing performance.
Applications
The MR-1S weighing module is an optimized solution for dynamic weighing systems, including:
- Mixing Hoppers
- Silos
- Vessels
- Tank Weighing Systems
Installation Environment
- Ideal for equipment with tight space constraints.
- Enables stable installation for vertical load measurement, even in process lines with vibration and movement.
Dimensions
| Capacity | D | H | H1 | H2 | L1 | L2 | L3 | L4 | W1 | W2 | W3 | W4 | M |
| 1~10t | 14.0 | 103.0 | 13.5 | 3.0 | 115.0 | 175.0 | 115.0 | 175.0 | 115.0 | 150.0 | 115.0 | 150.0 | M16 |
| 15~20t | 17.5 | 114.2 | 19.1 | 3.0 | 160.0 | 200.0 | 160.0 | 200.0 | 160.0 | 200.0 | 160.0 | 200.0 | M20 |
| 30t | 20.0 | 132.0 | 19.1 | 3.0 | 185.0 | 250.0 | 185.0 | 250.0 | 185.0 | 250.0 | 185.0 | 250.0 | M24 |
| 50~100t | 23.0 | 155.0 | 25.4 | 3.0 | 250.0 | 320.0 | 250.0 | 320.0 | 250.0 | 320.0 | 250.0 | 320.0 | M30 |
