Models
MB-2A-0.25t, MB-2A-0.5t, MB-2A-1t, MB-2A-5t
MB-2S-0.22t, MB-2S-0.55t, MB-2S-1.1t, MB-2S-2.2t, MB-2S-4.4t
Key Features
- Compact and Easy to Install
- Allows for quick and simple installation on small or medium-sized equipment.
- Blind Holes on Top Plate
- Facilitates easy mounting of top-loading components.
- Height-Adjustable Screws
- Overload and Anti-Tipping Protection
- Self-Aligning with Rocker Pin Design
- Utilizes a rocker pin structure to maintain stable weighing accuracy even with load movement.
- Choice of Materials
- Available in Alloy Steel or Stainless Steel.
- Assembled with B530 or B550 series single-ended shear beam load cells.
Precautions for Dynamic Weighing
- Must be installed with a horizontal tie rod.
- This is crucial in environments with internal material movement, such as mixing hoppers, to prevent interference between the weighing module and the upper structure.
Applications
The MB-2A 2S weighing module is suitable for the following static and dynamic weighing systems:
- Mixing Hoppers
- Silos
- Tanks
- Other vessel-based industrial weighing systems
Capacity Range
- 0.5 tons to 5 tons (0.5t ~ 5t)
- Ideal for small to medium-sized process equipment.
Summary of Advantages
- Suitable for both static and dynamic weighing applications.
- High repeatability and precision due to the self-aligning rocker pin design.
- Simple structure and easy installation.
- Stable weighing performance, even in environments with vibration and material mixing.

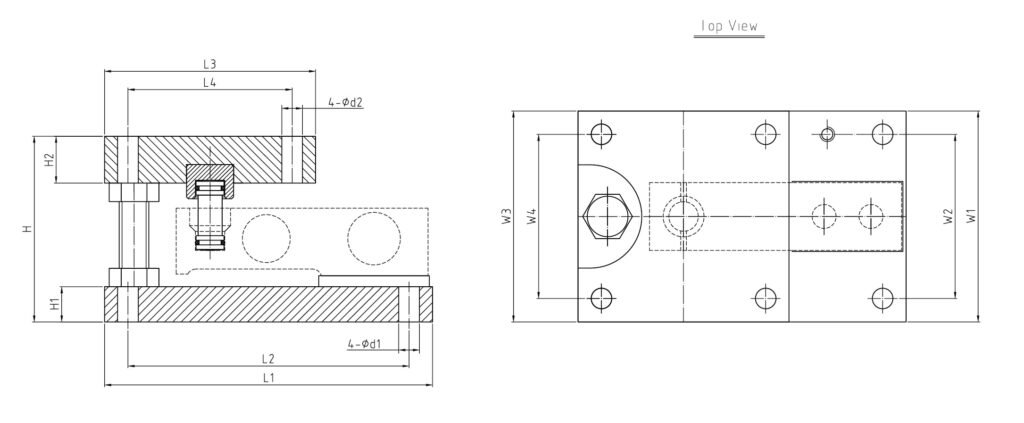

Dimensions
| Capacity | L1 | L2 | W1 | W2 | L3 | L4 | W3 | W4 | H | H1 | H2 | d1 | d2 |
| 0.25~2t | 177.8 | 152.4 | 114.3 | 88.9 | 114.3 | 88.9 | 114.3 | 88.9 | 100.7 | 19.1 | 25.4 | 11.2 | 11.2 |
| 0.22~2.2t | 177.8 | 152.4 | 114.3 | 88.9 | 114.3 | 88.9 | 114.3 | 88.9 | 100.7 | 19.1 | 25.4 | 11.2 | 11.2 |
| 4.4t/5t | 235 | 184.2 | 152.4 | 101.6 | 152.4 | 101.6 | 152.4 | 101.6 | 130.5 | 25.4 | 31.8 | 11.2 | 17.5 |

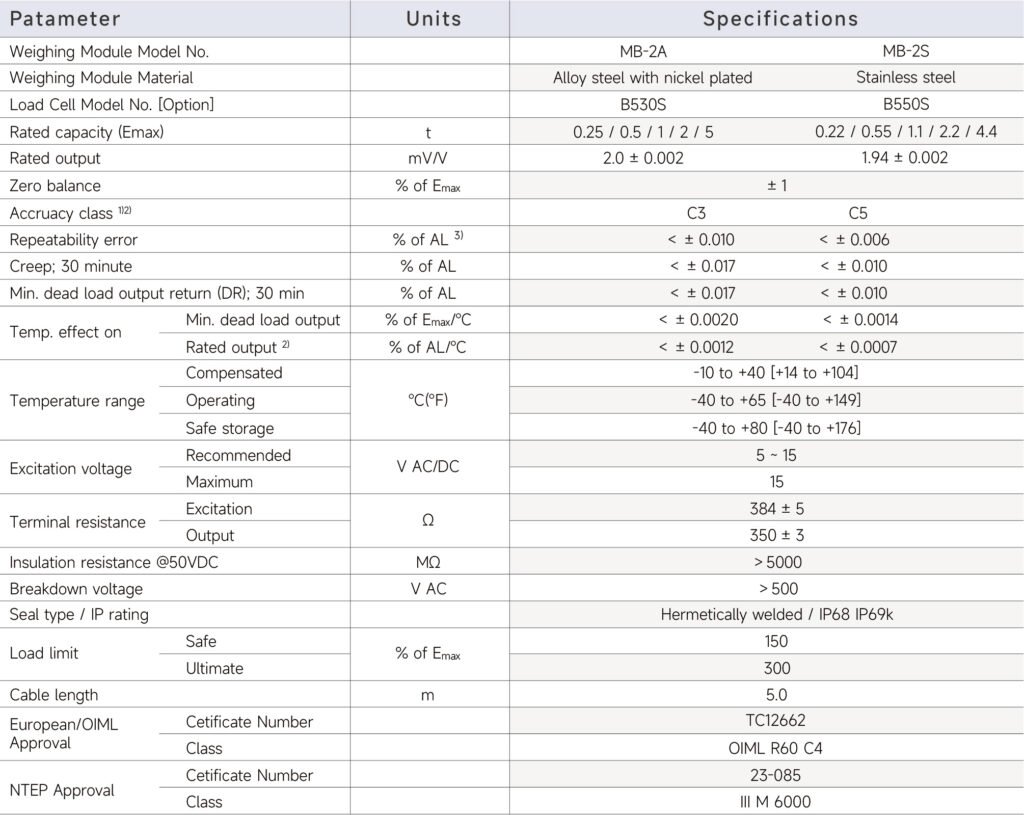

Specifications
