MLC902 body scale load cell

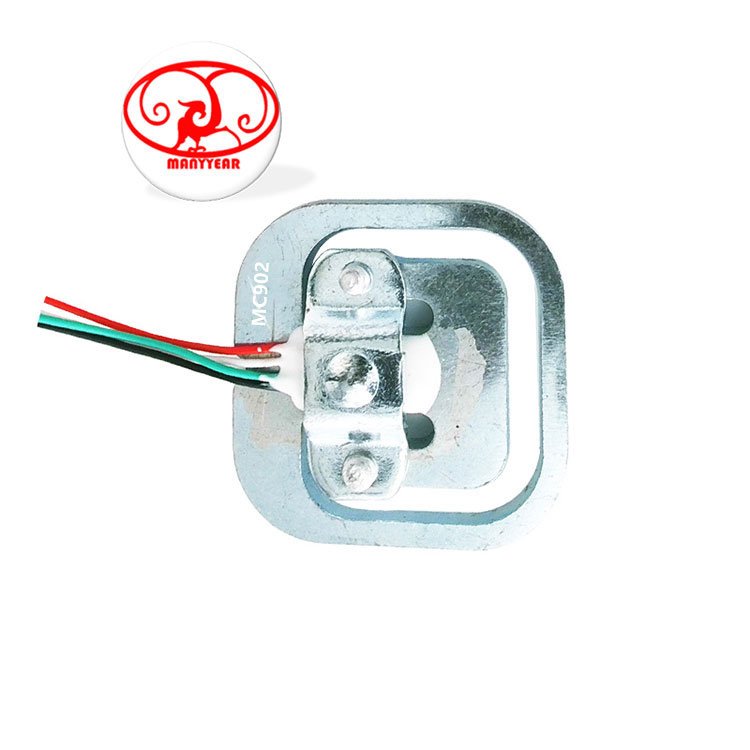

Product Picture Reference
Technology Specification
Below spec is only for customer design reference. We can provide ODM product.
MLC902 body scale load cell
|
Model: MLC902 Catalog: Micro load cell Rated load: 10kg, 30kg, 50kg, 75kg Dimension: 34*34*H(mm) Material: alloy steel Safe overload: 150%; Ultimate overload: 200% Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, baby scale load cell, pet scale load cell |
|||||||
| Output Specification | |||||||
| Load range | 10kg | 30kg | 50kg | 75kg | |||
| H1 | 1.5 | 2 | 2.5 | 3 | |||
| H2 | 6.8 | 7.3 | 7.8 | 8.3 | |||
| HB Rated output | 0.5±0.15mV/V | 1.0±0.15mV/V | 1.0±0.15mV/V | 1.0±0.15mV/V | |||
| FB Rated output | 1.0±0.15mV/V | 1.8±0.15mV/V | 1.8±0.15mV/V | 1.8±0.15mV/V | |||
| Specification | |||||||
| Comprehensive error: | 0.2%FS | Output resistance: | 1000±10Ω | ||||
| Rated output: | Refer to above spec | Insulation resistance: | ≥2000MΩ(100VDC) | ||||
| Non-linearity: | 0.2%FS | Excitation voltage: | 3~10VDC | ||||
| Hysteresis: | 0.2%FS | Compensated temp: | -10~+40ºC | ||||
| Repeatability: | 0.15%FS | Use temperature: | -20~+55ºC | ||||
| Creep: | 0.15%FS/10Min | Temp effect on zero: | 0.5%FS/10ºC | ||||
| Zero balance: | ±0.3mV/V | Temp effect on span: | 0.2%FS/10ºC | ||||
| Input resistance: | 1000±5Ω | Defend grade: | IP66 | ||||

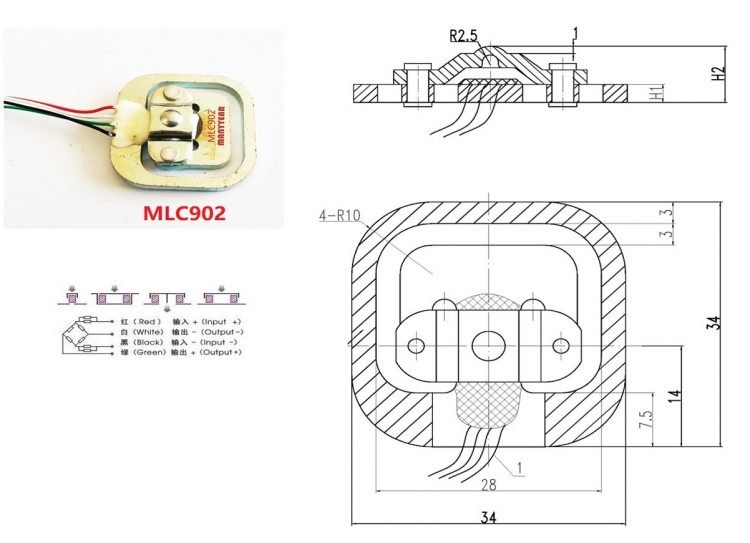

Product Dimension
Force Structure & Assembly Reference
