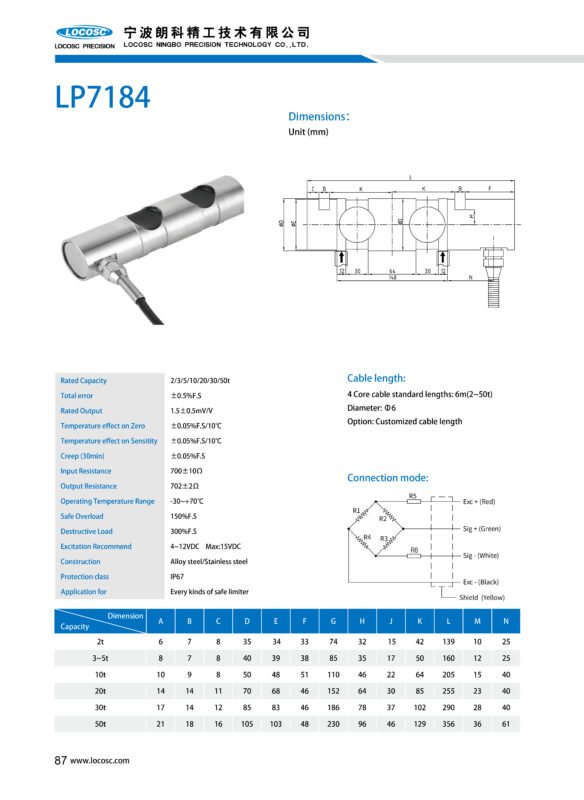

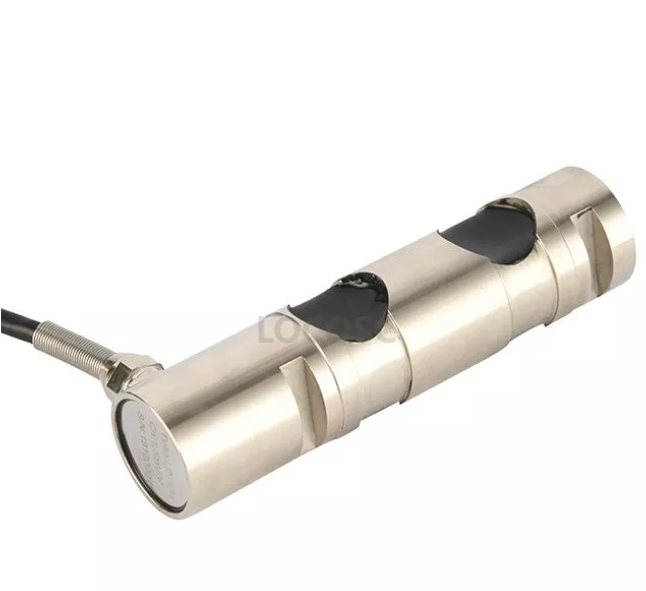

LP7184 Pin Load Cell
High-precision weighing sensor, stainless steel material, electronic weighing system
● High precision weighing sensor
● Stainless steel material
● Electronic weighing system
Product description:
Capacity ：3~55Ton
Material: stainless steel materials
Type: Parallel beam type
Defend grade: IP68
High accuracy, stable and reliable
Application: draft sensors, cranes, hopper weighing, process weighing and onboard vehicle weighing
The ZMHBZB is load cell pin widely used for ports, terminals and cargo cranes as well as hoist, lifting equipment and safety test applications. The 17-4PH construction enables load cell achieve IP68 protection class. The capacity and dimension can be designed based on customer’s requirements. The ZMHBZB has very good accuracy and long-term stability.
Features:
Capacity 50KN
High stability
Stainless steel construction
Crane, hoist and lifting applications
Optional features:
Customizable dimensions
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
