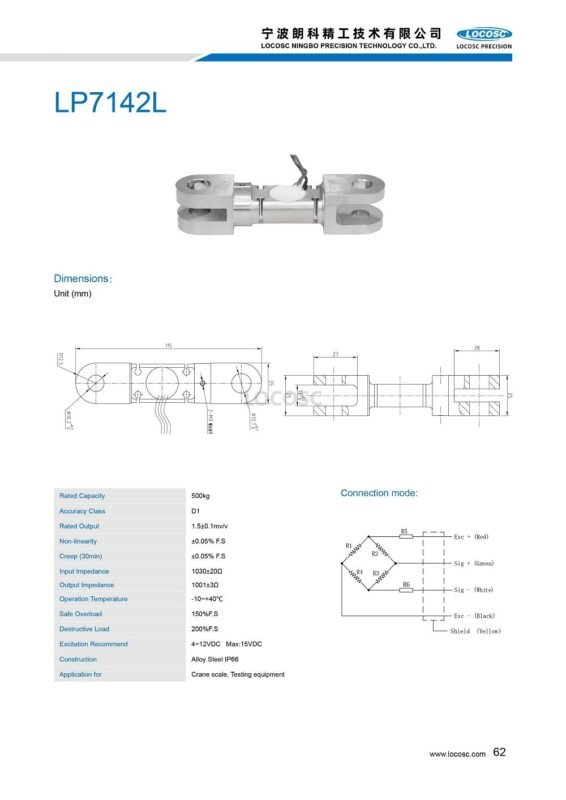

LP7142L Push Pull Force Load Cell
LOCOSC / LP7142L Push Pull Force Load Cell
LP7142L Tension Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
- Capacity: 0-5T
- Sensitivity: 2.0 mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
- Capacity: 0-1.5t
- Sensitivity: 2.0 mV/V
- Non-linearity 0.031% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.1% F.S.
- Repeatability 0.05% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-50kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
- Capacity: 0-7T
- Sensitivity: 2.0 mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.
