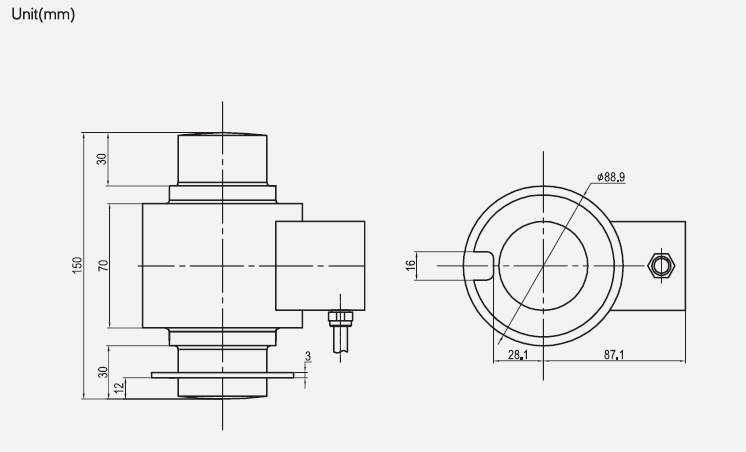

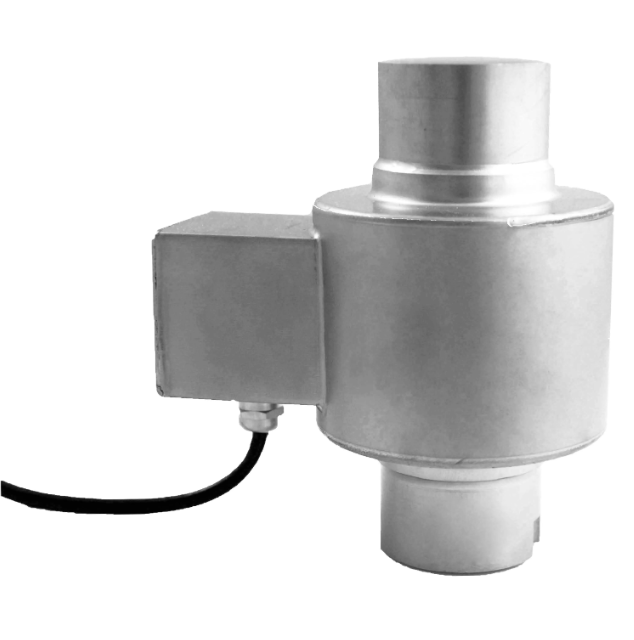

LOCOSC / LP7137 Compression Load Cell

The ZMMC4 is donut type force sensor which is available in a wide range of standard capacities from 5kg through to 2000kg. The ZMMC4 is configured for compression force measurement acting on cylinders, bolts or shafts. A range of internal through-hole diameters is available. The outer and inner diameter can be customized based on client’s requirements.

Stainless steel construction

Nickel plated alloy steel

Used in injection molding and extrusion manufacturing processes;
Automobile pressing, 3C product testing, new energy product assembly,
Medical testing, robotics, and other industrial test, measurement, and control systems.

The ZML2 is large force capacity pancake or spoke type compression load cell, capacity from 100t up to 1000t. The load cell is widely used in universal testing machine and construction force measure.

Nickel plated alloy steel

The ZMLBA is high precison spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The load cell is suitable for testing machines and special measuring equipment. Stainless steel construction is optional.

Nickel plated alloy steel

Used in auto press assembly, automated assembly, 3C product testing New energy product assembly, medical testing, robotics, etc.

Compression load cell is special designed for weight measurement, with good anti-eccentric load performance, low height, all sealed, complete specifications, Load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse.

Used in manufacturing processes such as injection molding and extrusion;
Automobile press assembly, automated assembly, 3C product testing,
Robotics, medical testing, and other industrial tests and measurements.

Based on LCT advanced metal foil strain gauge technology,LCT’s torque sensors are made from aluminum alloy and sealed to IP65 protection grade.
Model LAN-X1 load cells are designed to this “torque/multidirection force”type and manufactured from high quality aluminum alloy of aviation standard. LAN-X1 oad cells can be used to measure loads range from 10N to 50N with the measuring accuracy of 0.2% R.O.( R.O.=Rated Output)
LAN-X1 load cells are mainly used for force measuring in a narrow space, torque wrensh and torsion measurement of shaft and multidirection force measuring systems.

Used in auto press assembly, automated assembly, 3C product testing, New energy product assembly, medical testing, robotics, etc.

Widely used in auto press assembly, automated assembly, 3C product testing,
New energy product assembly, medical testing, robotics;High dynamic response frequency.

Material: stainless steel, Customizable high temperature performance
Size: Small size, Low height

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, etc.

Material: stainless steel, Customizable high temperature
Size: Small size, Low height
