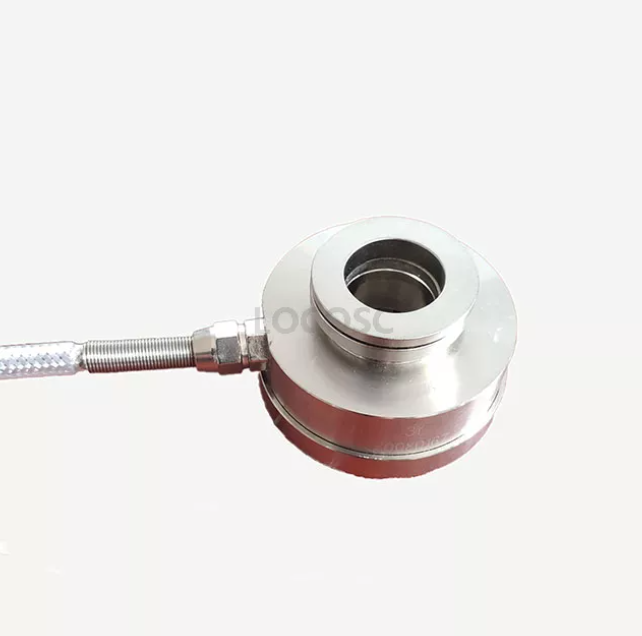

LOCOSC / LP7133JA Compression Load cell

LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C1/LTU-C1 start from 5kg to 10kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C1/LTU-C1 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.

Nickel plated alloy steel

Can be loaded biaxially;Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, etc

Material: stainless steel, alloy steel
Size: Spoke type, Other ranges can be customized

Used in auto press assembly, automatic assembly, 3C product testing;New energy product assembly, medical testing, robotics;
Mold assembly and other industrial test, measurement and control systems, etc.

Material: stainless steel
Size: Small size, Large range, Shock proof

Material: stainless steel, alloy steel
Size: Different size reference

Based on LCT advanced metal foil strain gauge technology,LCT’s torque sensors are made from aluminum alloy and sealed to IP65 protection grade.
Model LAN-X1 load cells are designed to this “torque/multidirection force”type and manufactured from high quality aluminum alloy of aviation standard. LAN-X1 oad cells can be used to measure loads range from 10N to 50N with the measuring accuracy of 0.2% R.O.( R.O.=Rated Output)
LAN-X1 load cells are mainly used for force measuring in a narrow space, torque wrensh and torsion measurement of shaft and multidirection force measuring systems.

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, etc .;
High dynamic response frequency, can be used outdoors or in harsh environments.

Material: stainless steel, High precision
Size: Small size, Low height

The ZMPL is fatigue rated load cells are specifically designed for component durability and fatigue test machines where highly cyclical loading is present. These rugged load cells are extremely resistant to extraneous bending and side loading forces. They are used for material testing, component life cycle testing and structural testing. All fatigue rated load cells are guaranteed against fatigue failure for 100 million fully reversed cycles.

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, etc.

Material: stainless steel, Customizable high temperature
Size: Small size, Low height

The ZMNH model load cell is designed as RTN structure. This structure has really high accuracy but compact size. Compared with other types, ZMNH is most effective and stable. The load cell is usually used with adapter kits which can be offered as well.

Compact size

The ZMNZT is double flanges type compression load cell, capacity from 300KN up to 5000KN. Construction using special steel. Efficient internal protection against the strong induced currents from lightning. The ZMNZT model is manufactured to maintain its performance capabilities in external environmental conditions. Its application is the load control in high capacity silos. Also, it substitutes level indicators with higher precision and reliability.

Compression load cell is special designed for weight measurement, with good anti-eccentric load performance, low height, all sealed, complete specifications, Load cell can be applied for platform scale, truck scale, rail weighbridge and material level measurement and control in warehouse.
