LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-C6A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-C6A load cells can be used to measure loads range from 3kg to 40kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-C6A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.

Add to Wishlist
Share it:

Model: LAB-C6A

Capacity: 20,30,40,50,60,100Kg

Usage: pricing scale,counting scale weighing scale & small platform scale

Dimension: 130*38*22mm

Features

  • parellel bending beam
  • capacity:3kg,…,40kg
  • accuracy:0.03%R.O.
  • option:350Ω input resistance can be provided
  • recommended platform size:250*350MM
  • aluminum construction with surface anodized
  • cost-effective
  • environment protection class:IP65

Applications

  • price computing scales
  • counting scales
  • weighing scales
  • retail scales
  • bench scales

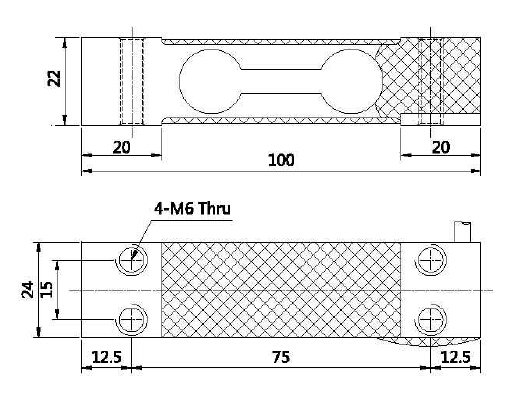

Dimension

Electrical Connection
