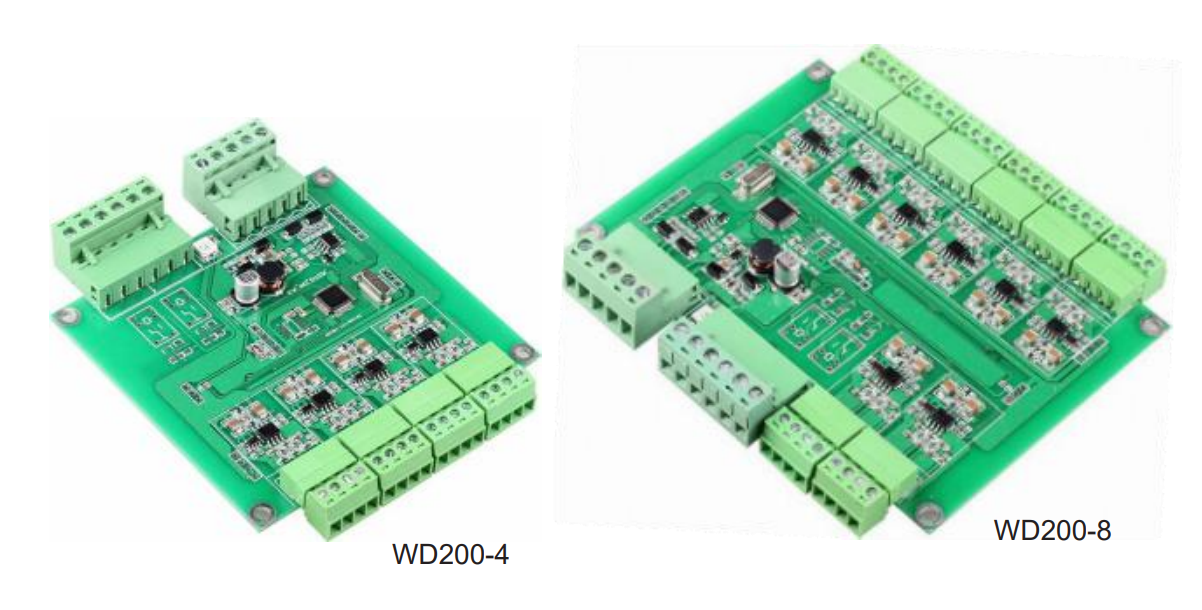

WD200 Weighing display transmitter
Features
- Small size, convenient and applicable
- Applicable to all resistance strain type weighing sensors
- Support 1~8 sensor access

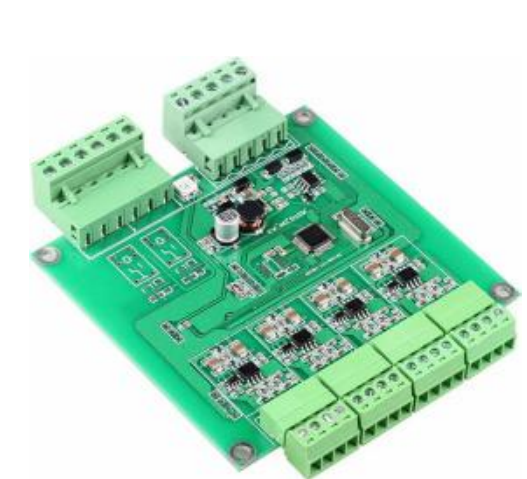

- WD200-4 can support up to four sensor accesses
- WD200-8 can support up to eight sensor accesses
- With RS485 or RS232 communication interface
Applications
- Applicable to all resistance strain type weighing sensors
| Specification | |
| Power supply | DC 12-24V |
| Operating temperature | -10℃~40℃ |
| Humidity | 90%RH non-condensing |
| Power | Maximum 10W |
| Sensor input voltage | DC5V |
| Communication protocol | Standard Modubus RTU and custom protocol |
| Communication interface | RS485 or RS232 |
| Physical dimensions | 93.3*87.6(WD200-4) 123*88(WD200-8) |
