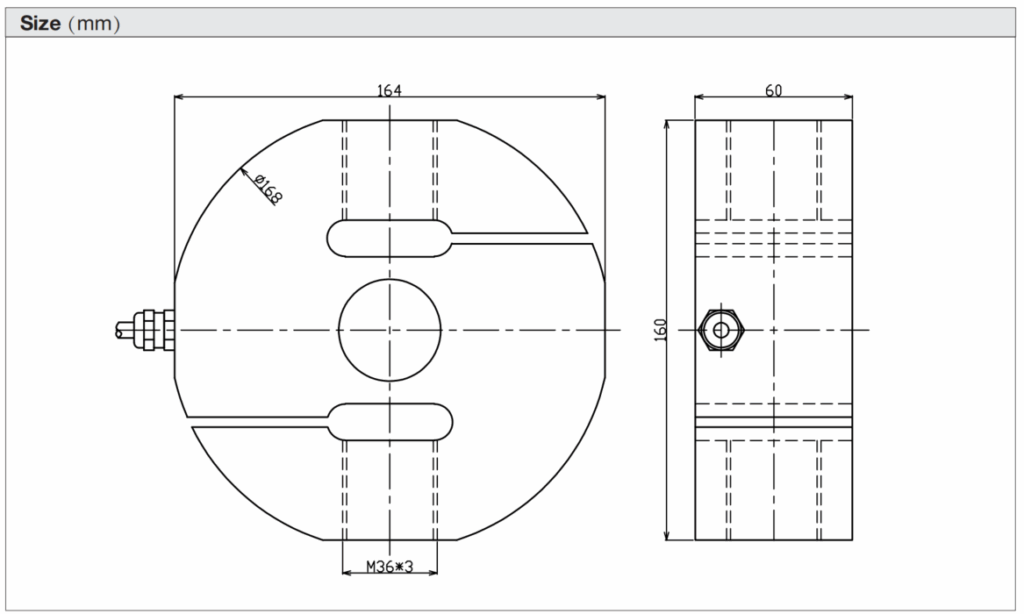

Labirinth / STS / S Type Load Cell

This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.

50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.

This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.

3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.

0.5kN 1kN 2kN 3kN 5kN 10kN 20kN 50kN 100kN ≤0.1%F.S. Stainless Steel Column Type Load Cell is a model of Column Type Load Cell, its material is Stainless steel, it could measure load 0.5kN, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 50kN and 100kN, its rated output is 1.5±10%mV/V, zero balance is ±0.02mV/V, its weight is 0.8kg or 2kg, and its creep(30min)≤0.1%F.S..

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.

500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.

20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.
