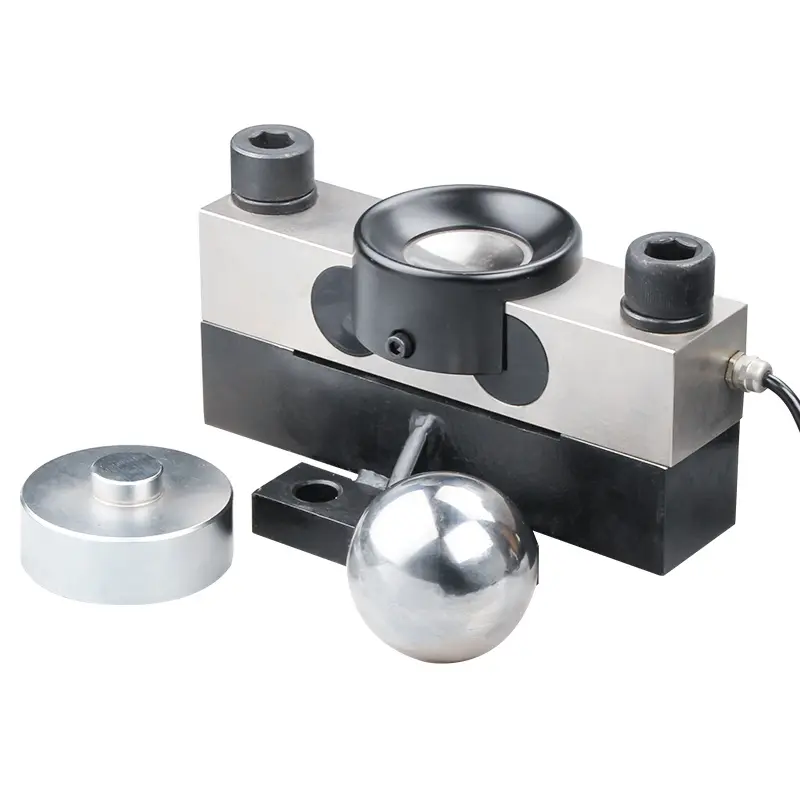

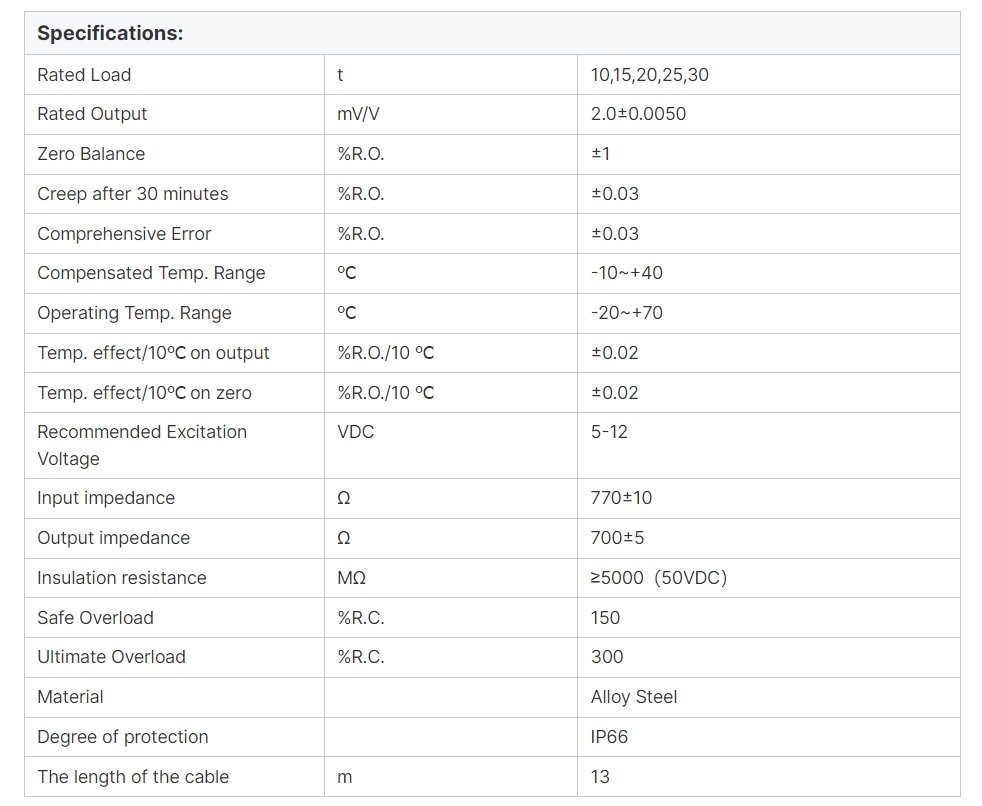

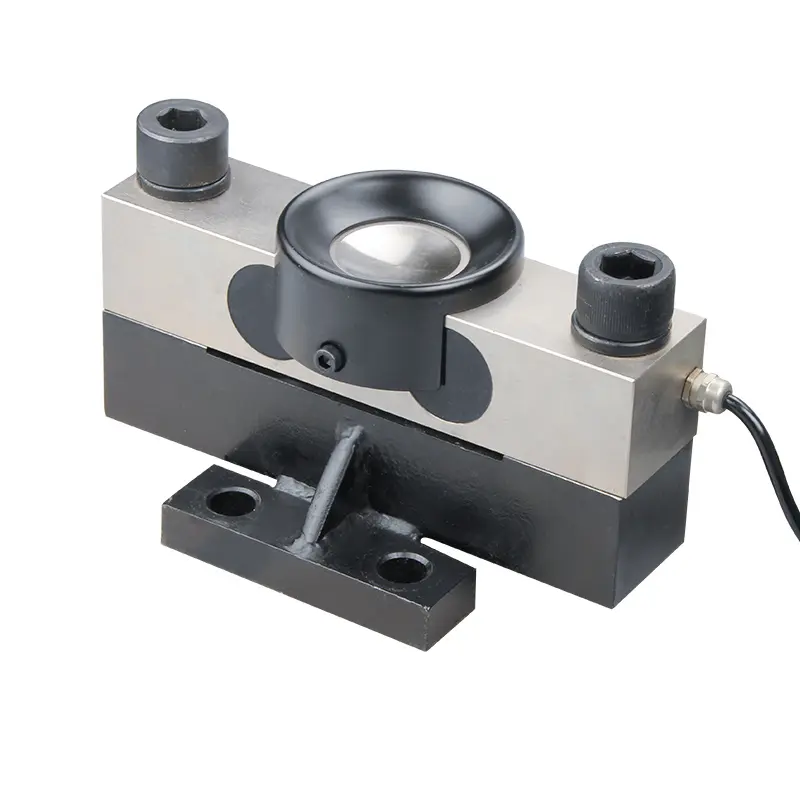

Capacity: 10 ton, 15 ton, 20 ton, 25 ton, 30 ton
Material: High-quality alloy steel with nickel-plated surface
Type: Shear beam type
Protection Class: IP66
Applications: Suitable for truck scales, rail scales, hopper scales, and various specialized weighing equipment.
※Product specifications are subject to change without notice.
