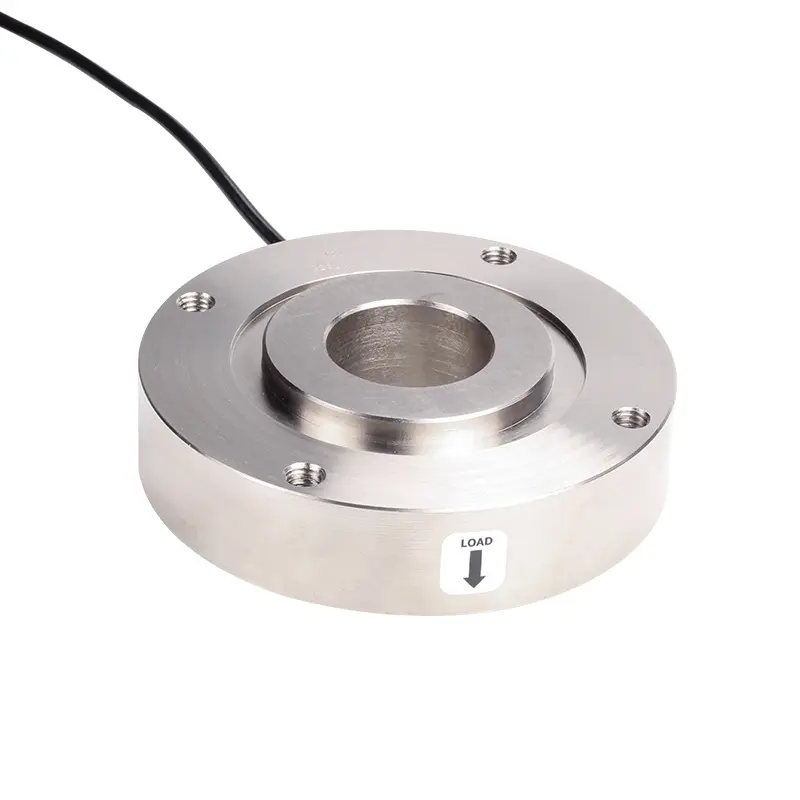

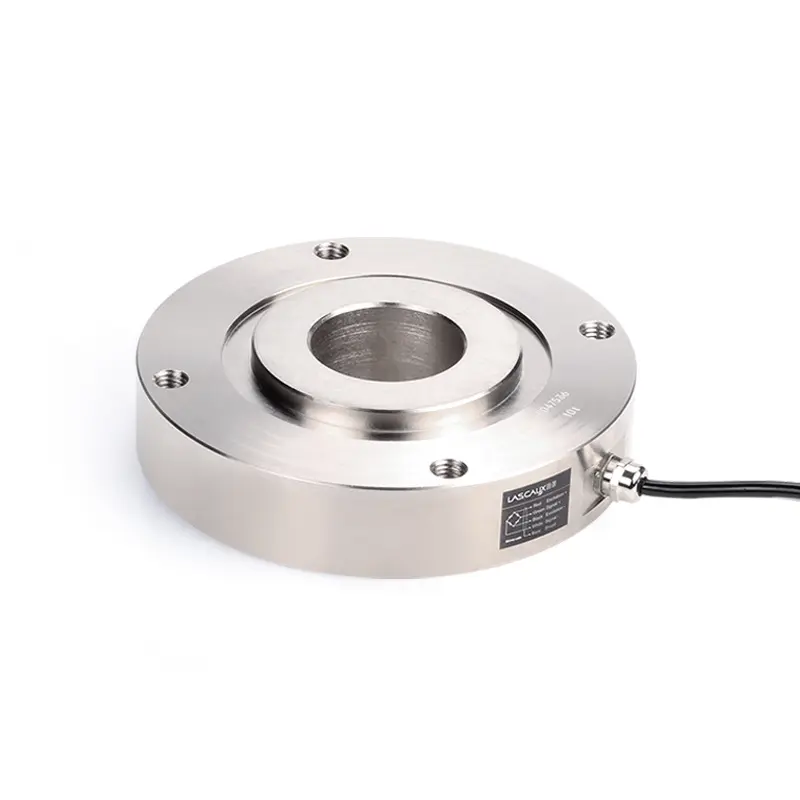

Labirinth / LCD820 / Through Hole Load Cell

50,100,200,500,800kg Or Customized Spoke Type Load Cell FA127D belongs to FA127 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA127D can be used to measure load 50kg,100kg,200kg,500kg and 800kg or customized capacity, its Creep(30min) ≤0.032%F.S. or can be customized, its Non-linearity and Repeatability both ≤0.035%F.S. or also can be customized, and its Hysteresis ≤0.038%F.S. or can also be customized.

This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.

50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.

50-70t Spoke Type Load Cell FA120C is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120C can be used to measure load 50t and 70t capacity, its Zero Balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S..

0–200 N Raw Sensitivity 0.6–0.8 Stainless Steel Column-Type Load Cell FA906 is a model from our FIBOS FA9-Series. The Column-Type Load Cell FA906 can measure loads up to 200 N, with a raw sensitivity range of 0.6–0.8. Its rated output is 4–20 mA, and its zero balance is within ±1 % mV/V.

500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.

100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.
