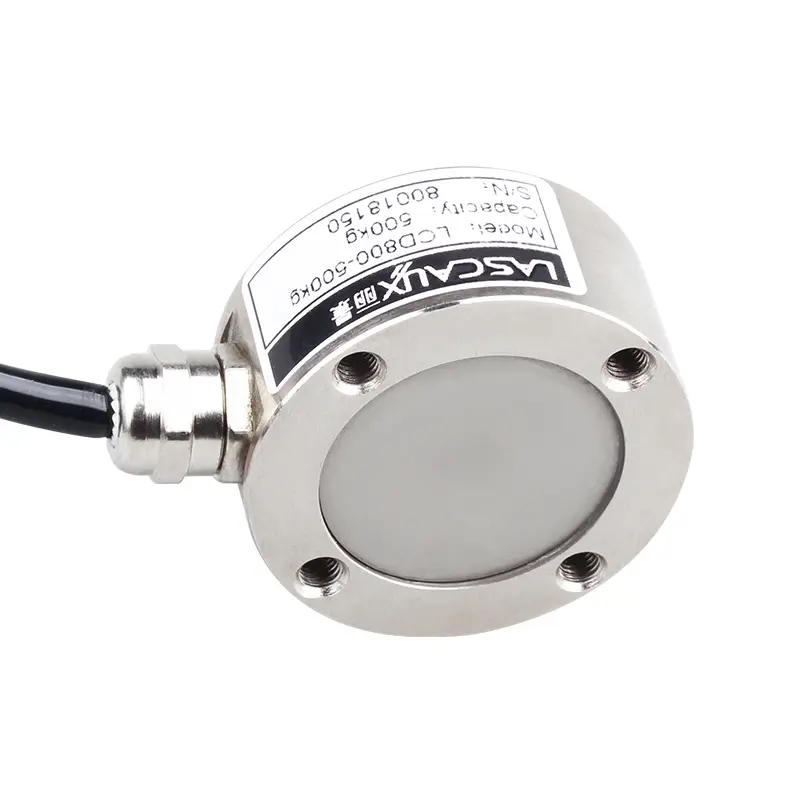

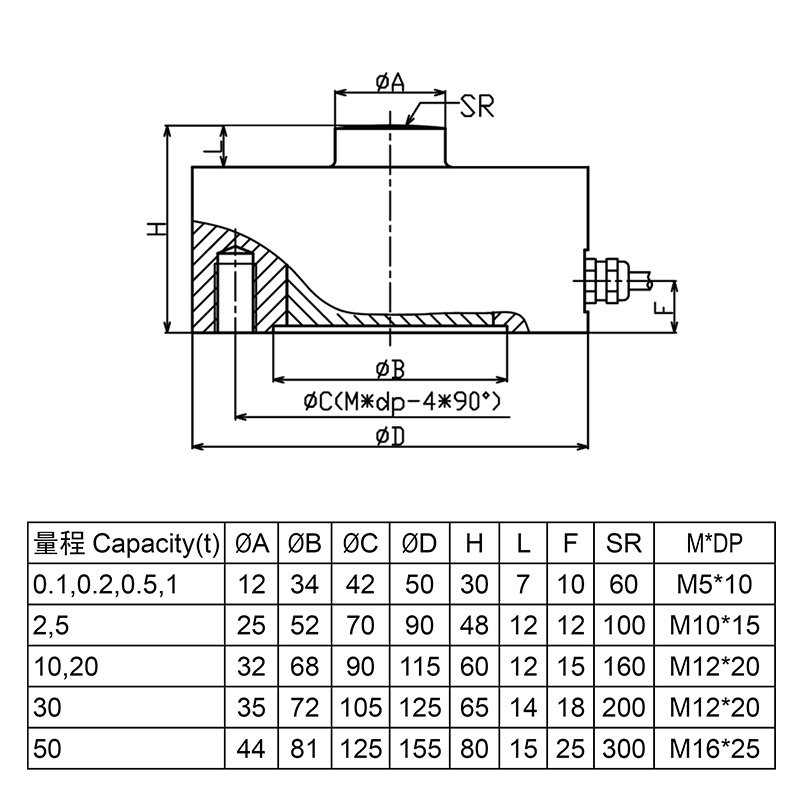

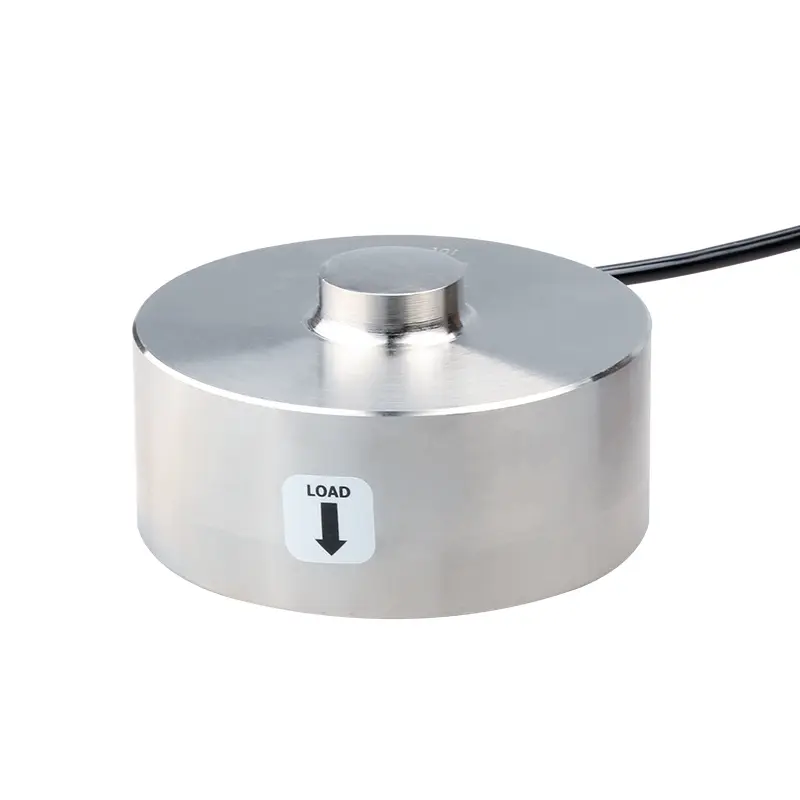

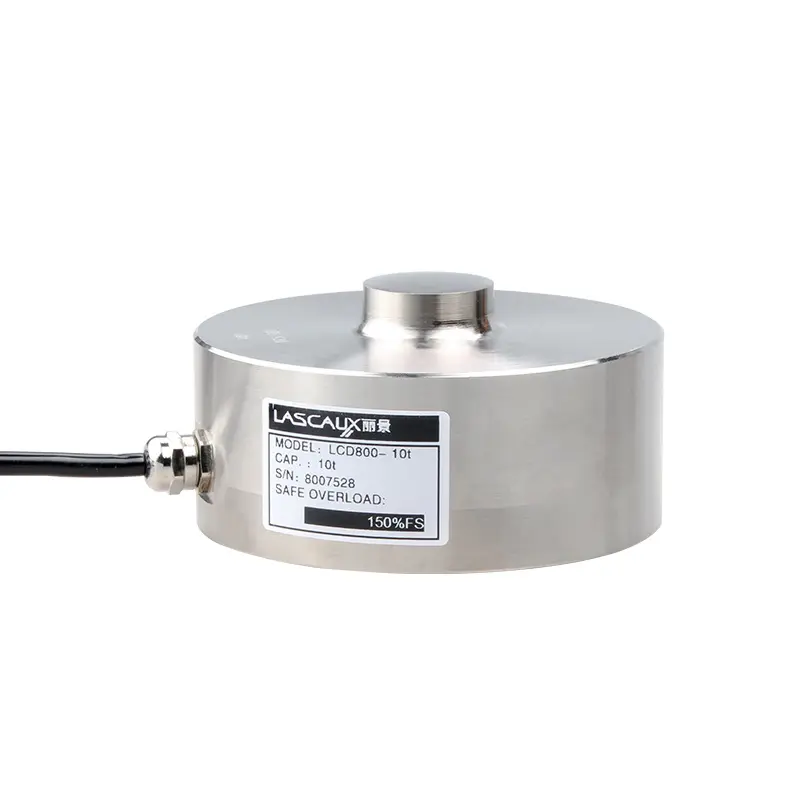

Labirinth / LCD800 / Low Profile Disk Load Cell

5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.

5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.

0.5kN 1kN 2kN 3kN 5kN 10kN 20kN 50kN 100kN ≤0.1%F.S. Stainless Steel Column Type Load Cell is a model of Column Type Load Cell, its material is Stainless steel, it could measure load 0.5kN, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 50kN and 100kN, its rated output is 1.5±10%mV/V, zero balance is ±0.02mV/V, its weight is 0.8kg or 2kg, and its creep(30min)≤0.1%F.S..

50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.

This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.

50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.

10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
