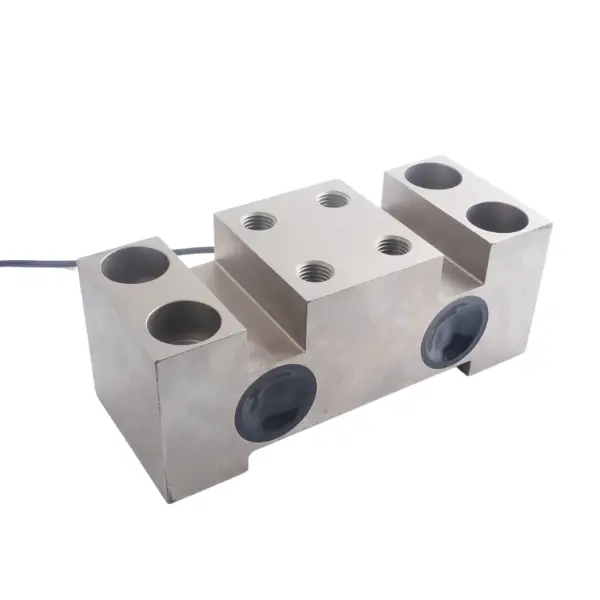

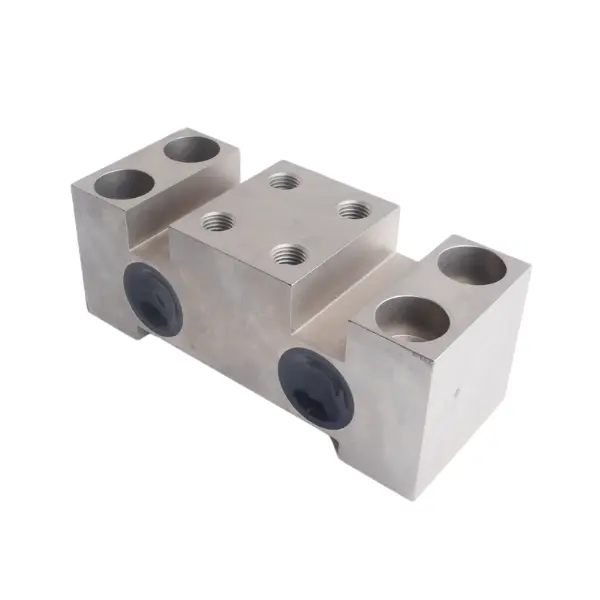

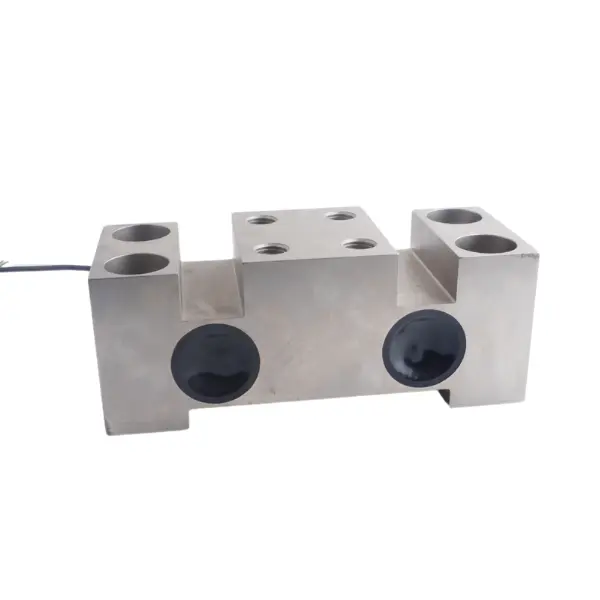

Features
- The capacity ranges from 10 to 50 tons.
- Material: Nickel-plated alloy steel surface
- Type: Shear Beam Type
- Protection Rating: IP67
- Applications: Suitable for ladles used to handle molten metal.
Dimensions
※Product specifications are subject to change without notice.
Specifications
Specification | ||
Rated load | 10,20,30,50 | t |
Sensitivity | 1.3±0.0050 | mV/V |
Zero output | ±0.02 | %R.O. |
Nonlinearity | ±0.1 | %R.O. |
Creep (30 minutes) | ±0.05 | %R.O. |
Repeatability | ±0.03 | %R.O. |
Normal operating temperature range | -10~+40 | ℃ |
Allowable operating temperature range | -20~+70 | ℃ |
Effect of temperature on sensitivity | ±0.1 | %R.O./10℃ |
Effect of temperature on zero | ±0.1 | %R.O./10℃ |
Recommended excitation voltage | 5-12 | VDC |
Input impedance | 380±10 | Ω |
Output impedance | 350±5 | Ω |
Insulation impedance | ≥5000(50VDC) | MΩ |
Safe overload | 150 | %R.C. |
Ultimate overload | 300 | %R.C. |
Elastic element material | Nickel-plated alloy steel | |
Protection level | IP67 | |
Cable length | 8/13 | m |
