KWT1D65 High Accuracy Wheel Shape Weight Sensor
Description
KWT1D65 series can measure tension load and compression load. This series has multi-range from 2500N to 5000N can be choosen. It can work normally at -10℃ to 80℃, the temperature compensation range is 0~60℃. There are four countersunk holes in the circumferential direction of the sensor, which is convenient to connect with the bottom surface. Due to the small height size, the load cell is fit for using in a vertical space-constrained environment. It can compensate the influence caused by load eccentricity, while keeping high precision and reliability.
Spoke-style force sensors have several advantages over traditional force sensors. Firstly, they are much easier to install and maintain. They are also very robust and can withstand the harsh conditions of cycling, such as vibration, impacts, and temperature changes. Additionally, spoke-style force sensors provide more accurate and reliable data due to their proximity to the point of force application. They also offer a higher resolution, which makes them useful for analyzing small changes in force during different cycling conditions. Finally, spoke-style force sensors are more cost-effective than traditional force sensors, making them a great choice for research and development purposes.
 |
 |
 |

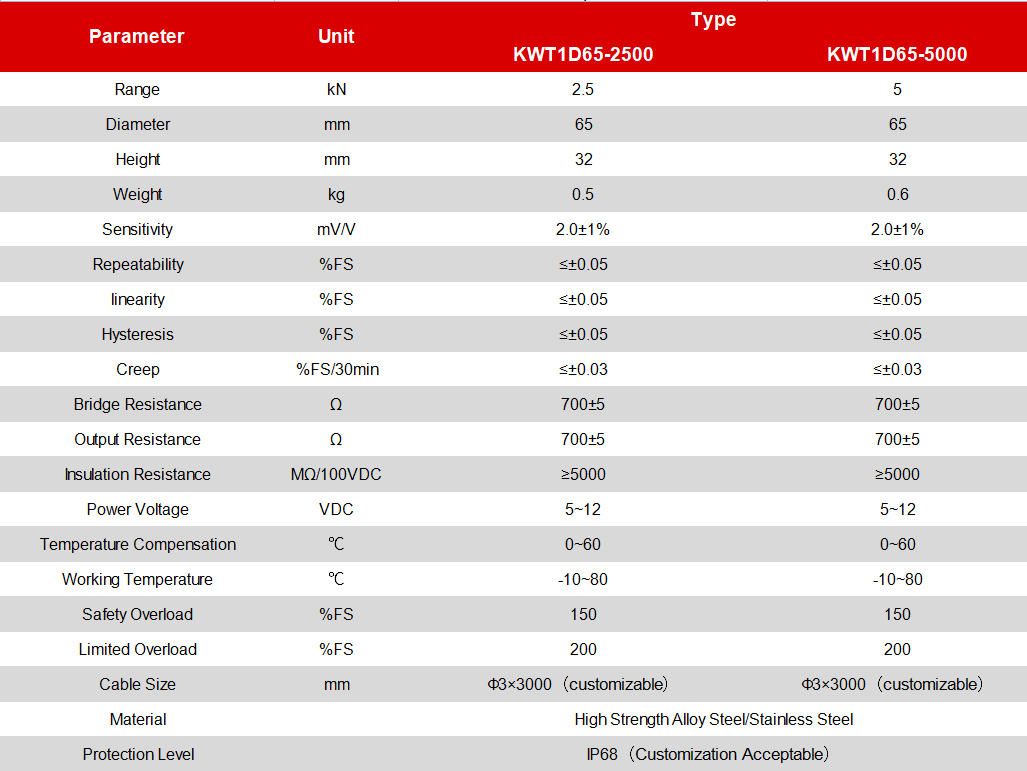

Model of KWT1D65
