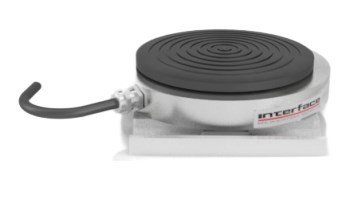

BPL Series Pedal Force Sensor

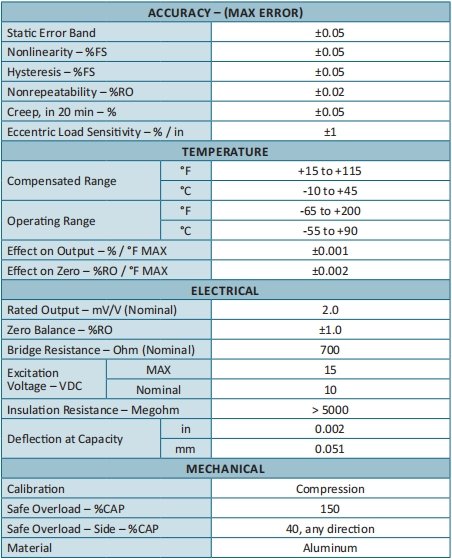

Technical parameters

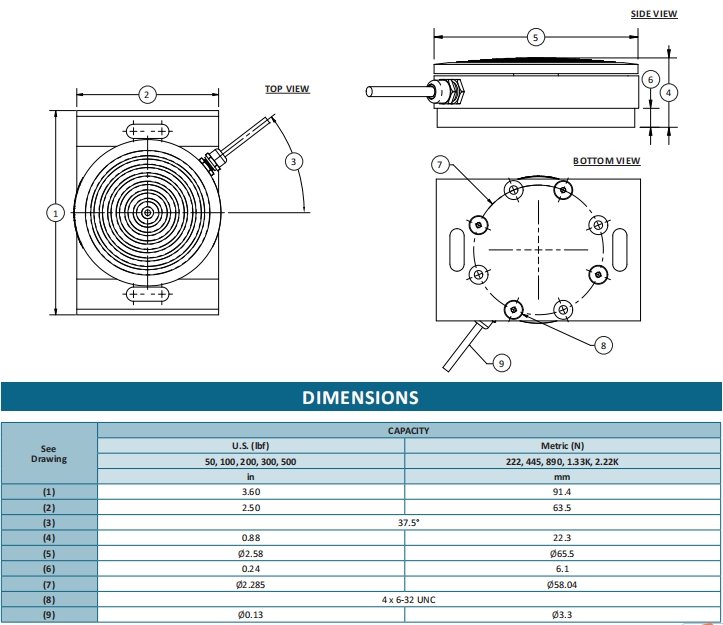

Dimensions
The ZMMC2 brake pedal force sensor is designed to measure load applied to the brake, accelerator or clutch pedal. Zhimin’s brake pedal load cells are manufactured to be of excellent quality, so that your application will be reliable, durable, accurate and precise.
Features：
Capacity 500-2000N
High accuracy
Low profile
Nickel plated alloy steel
Optional features：
Optional output(4-20mA,0-5V)
The ZM3DW 3 axis load cell utilizes independent wheatstone full bridge for Fx, Fy, Fz which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Cusotmaztion can consist of load cells with client’s outer dimension, mouting size, output signal etc. Used with Zhimin’s data logger which can collect load cell’s voltage signal and display force curve.
Features:
Capacity 50N-500kN
3 axis-Fx Fy Fz independent bridges
Low crosstalk
Compact size
Optional features:
0-5V output signal
Weighbridge load cells also known as truck scales are designed for truck and rail scales. The ZMHBQ is common product widely used around the world. The ZMHBQ is very cost-effective with C3 class. In most of situations, they are used at 4,6 or 8 numbers together, so their sensitivity must be exact same.
Features:
Capacity 10t-50t
High accuracy
Cost-effective
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Various industrial weighing systems such as testing machines, truck scales, hopper scales, etc.
Suitable for automotive press fitting, medical testing, new energy product assembly, robotics field
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMMA1 is miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The low profile, small diameter design enables the ZMMA1 to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Features:
Capacity 500N-5000N
Compact size
Easy installation
Stainless steel construction
Optional features:
4-20mA or 0-5V output
Various industrial weighing systems such as testing machines, truck scales, hopper scales, etc.
Various industrial weighing systems such as testing machines, truck scales, hopper scales, etc.
It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
The KWT1C25 is a tensile pressure sensor in a compact design. The special structural design makes the height of the sensor only 36 mm, which is an excellent choice for force measurement in a small space, and is very suitable for applications with a large measuring range and a small use space.
