Single-point Load Cell 698A
Product Description

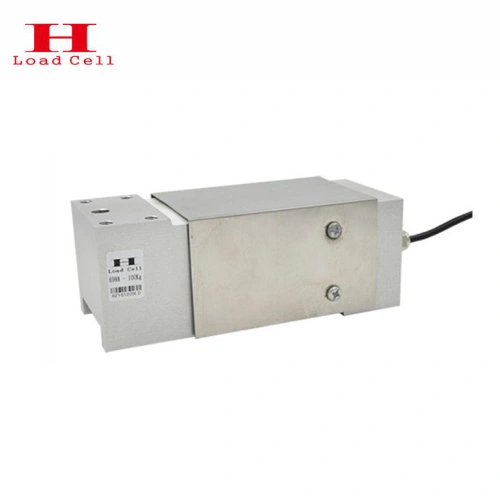

Zhejiang Huazhun Sensing 698A Single – Point Load Cell
The 698A single – point load cell, developed by Zhejiang Huazhun Sensing Technology Co., Ltd., is tailor – made for platform scale scenarios. Constructed from aluminum alloy, this single – point Type load cell is ideally suited for platform scale applications. It boasts an OIML C3 accuracy class and a capacity range spanning 100 – 1000kg, effectively catering to medium – and large – scale weighing demands.
In terms of performance, it exhibits remarkable reliability: With a sensitivity of 2.0 ± 10% mV/V, it can accurately convert weight signals. The zero – point equilibrium stands at 0.02mV/V, ensuring stable initial measurements. Within a 30 – minute period, the creep is merely 0.02%, and both hysteresis and repeatability are 0.017%, thus guaranteeing long – term data reliability. Whether for industrial material weighing or warehouse goods measurement, the 698A, leveraging its stable performance and Huazhun Sensing’s advanced technology, injects precise functionality into platform scales, enabling efficient weighing operations.
