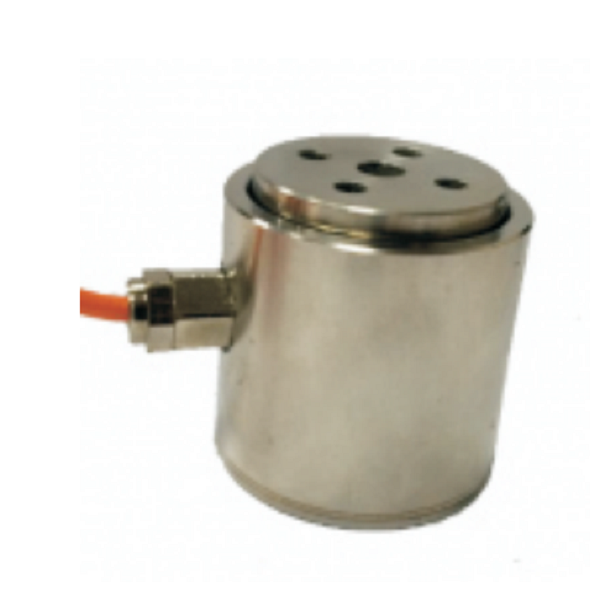

HUATRAN / F31 Column Force Sensors

KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.

The KWT1C35 is a large-capacity, compact design pull-and-press column sensor with a special mounting end face design that enables the sensor to meet the tensile-compression direction loading during use. Using 17-4PH as raw material, rated capacity of 20kN, with high durability and excellent accuracy.

Model 41 is a low profile “pancake” type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb to 500,000 lb. The tension/ compression Model 41 is designed with the threaded hole running completely through the center of the cell. Model 41 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Each unit has a welded construction and can be hermetically sealed for added durability. Model 41 load cells are available with optional 0 Vdc to 5 Vdc or 4 mA to 20 mA output.

KWT1S55 is a small range and high-precision tensile and compressive force sensor. Its main body is designed with an aluminum alloy structure, and its top is equipped with a compressive loading head, which is convenient for customers to apply pressure to the heart.

1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.

2.Simple to install, easy to use.

3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

Material: stainless steel

Size: Low height, Plane loading

SC9N은 무거운 계량 어플리케이션에 이상적인 컬럼형 폼팩터로 제작된 압축 로드셀입니다. 5톤에서 30톤까지 다양한 용량으로 제공되며, 대칭형 폼팩터로 설치 및 장착이 간편합니다.

The SC9N is a compression load cell built in the a column style form factor ideal for heavy weighing applications. Available in capacities from 5 Tonnes to 30 Tonnes, its symmetric form factor allow for easy installation and mounting.

KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

1.Made of stainless steel.

2.Laser welding sealing treatment, can be anti-oil, waterproof, anti-corrosive gases and media.

Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing.

Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.

Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.
