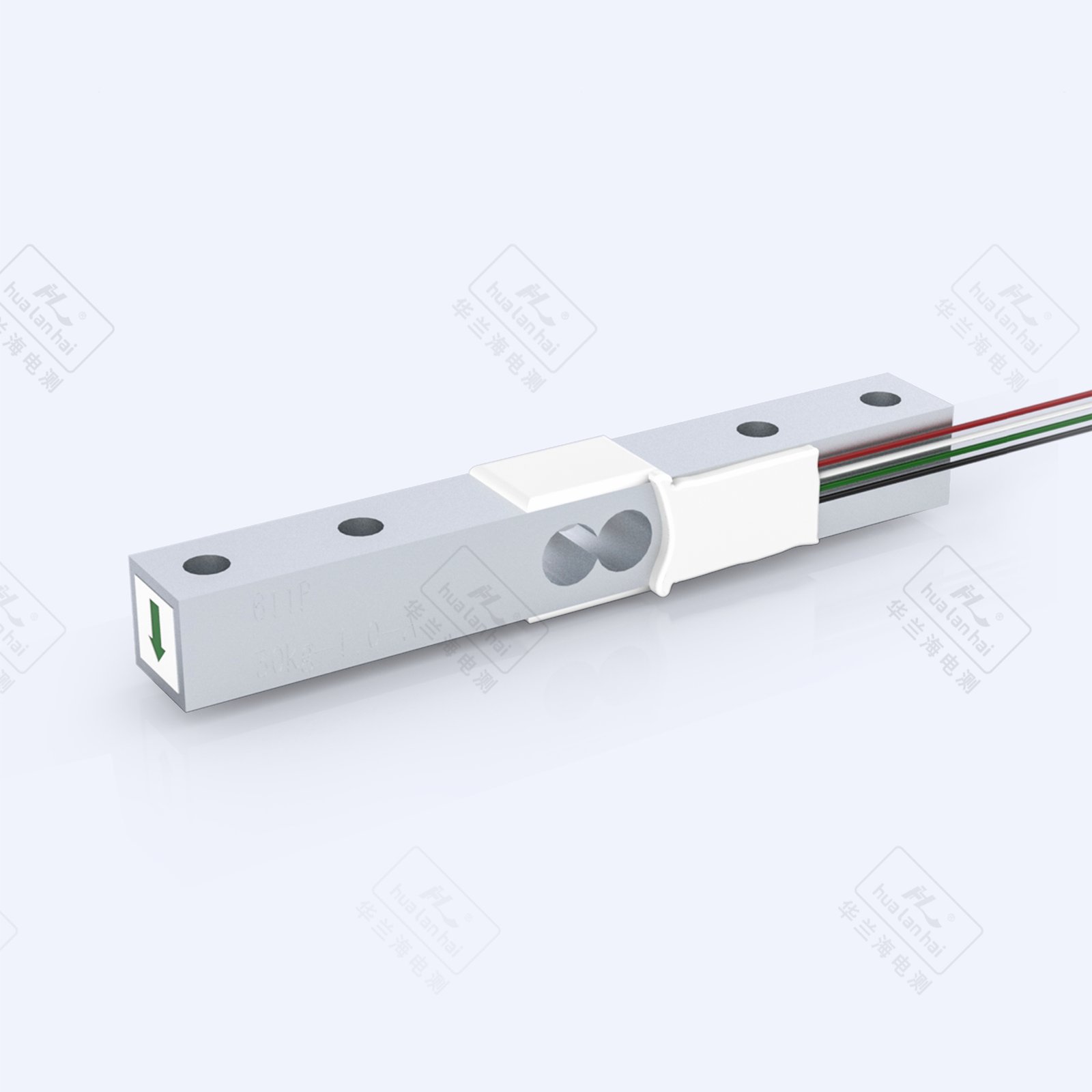

Model: CZL611P
Use: Postal Scale, Coffee Machine, Beer Maker, Pet Feeder, Pet Automatic Water Dispenser

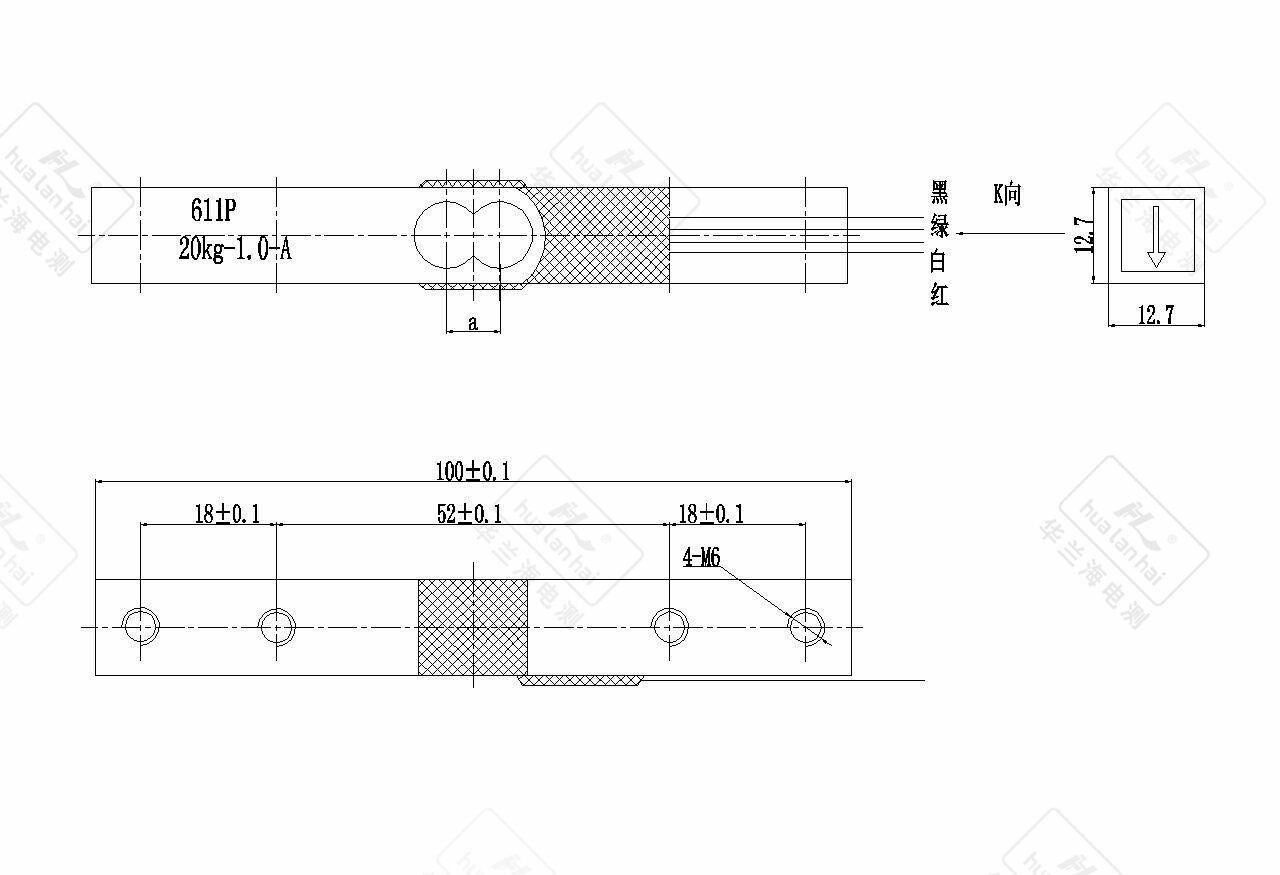

Structural diagram
parameter
|
Sensor range |
6kg/10kg/20kg/30kg/35kg |
|
Output sensitivity |
1.0±0.15 mV/V |
|
Linear error |
±0.05% FS |
|
