Model: CZL608H
Use: Count the scales, Tea machine, Industrial weighting

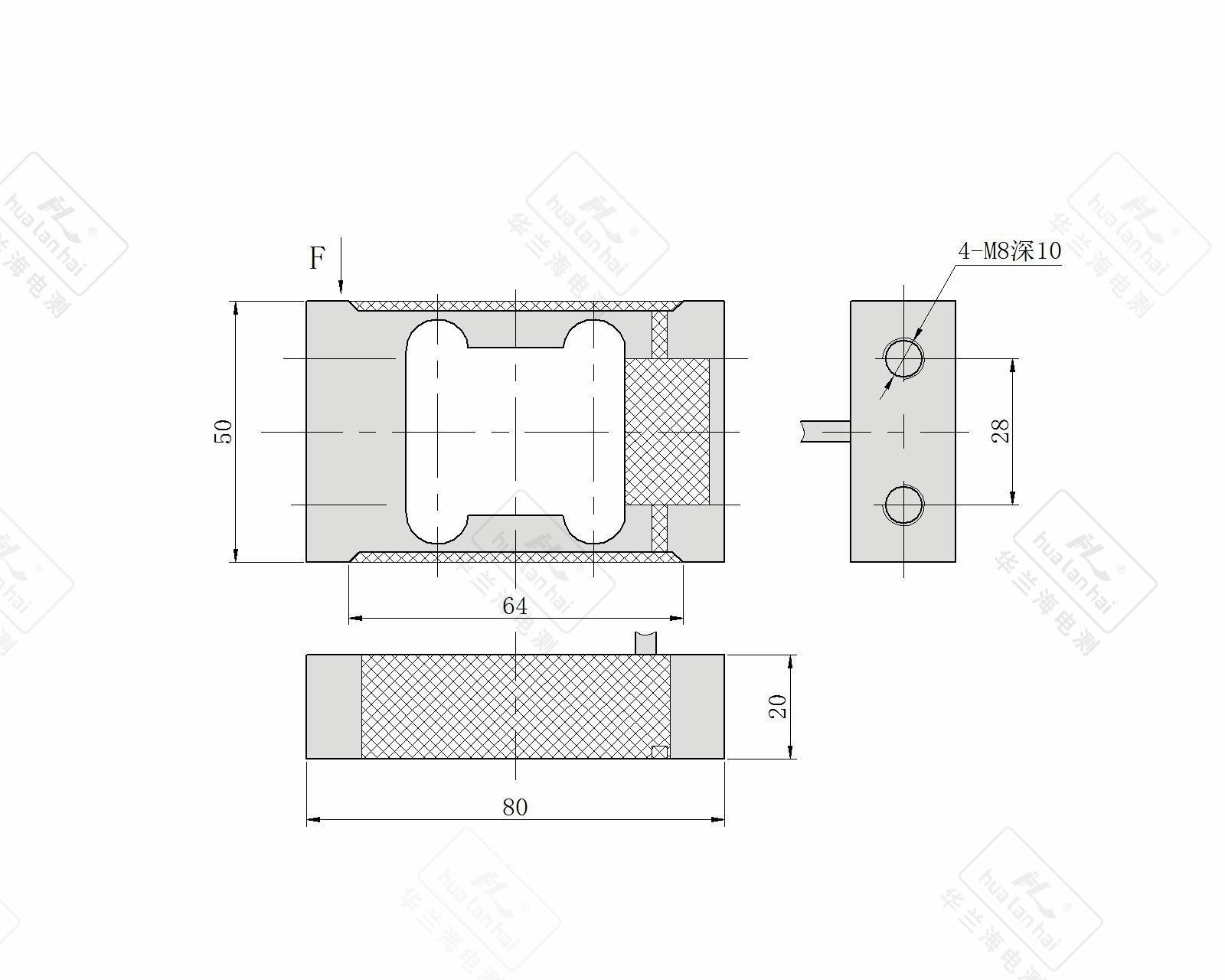

Structural diagram
parameter
|
Sensor range |
4kg ~ 20kg |
| Accuracy class | C2 |
|
Comprehensive error |
±0.03% FS |
|
Output sensitivity |
1.5±0.15 mV/V ; 2.0±0.2 mV/V |
|
creep |
±0.023% FS/30min |
|
Zero output |
±2.0% FS |
| Input impedance | 405±10Ω |
| Output impedance | 350±3Ω |
| insulation resistance | ≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.029% FS/10℃ |
| Sensitivity temperature effect | ±0.025% FS/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Operating temperature range | -20℃ ~ +60 ℃ |
|
Excitation voltage |
5VDC ~ 12VDC |
| Safe overload range | 120% |
| Limit overload range | 150% |
|
Recommended table size |
200*200mm |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
|
External dimension of sensor |
80*20*50 |
|
Mounting hole size |
2-M8 |
|
Location of mounting hole |
H28 |
