Model: CZL605DB
Use: Count the scales, Tea machine, Industrial weighting

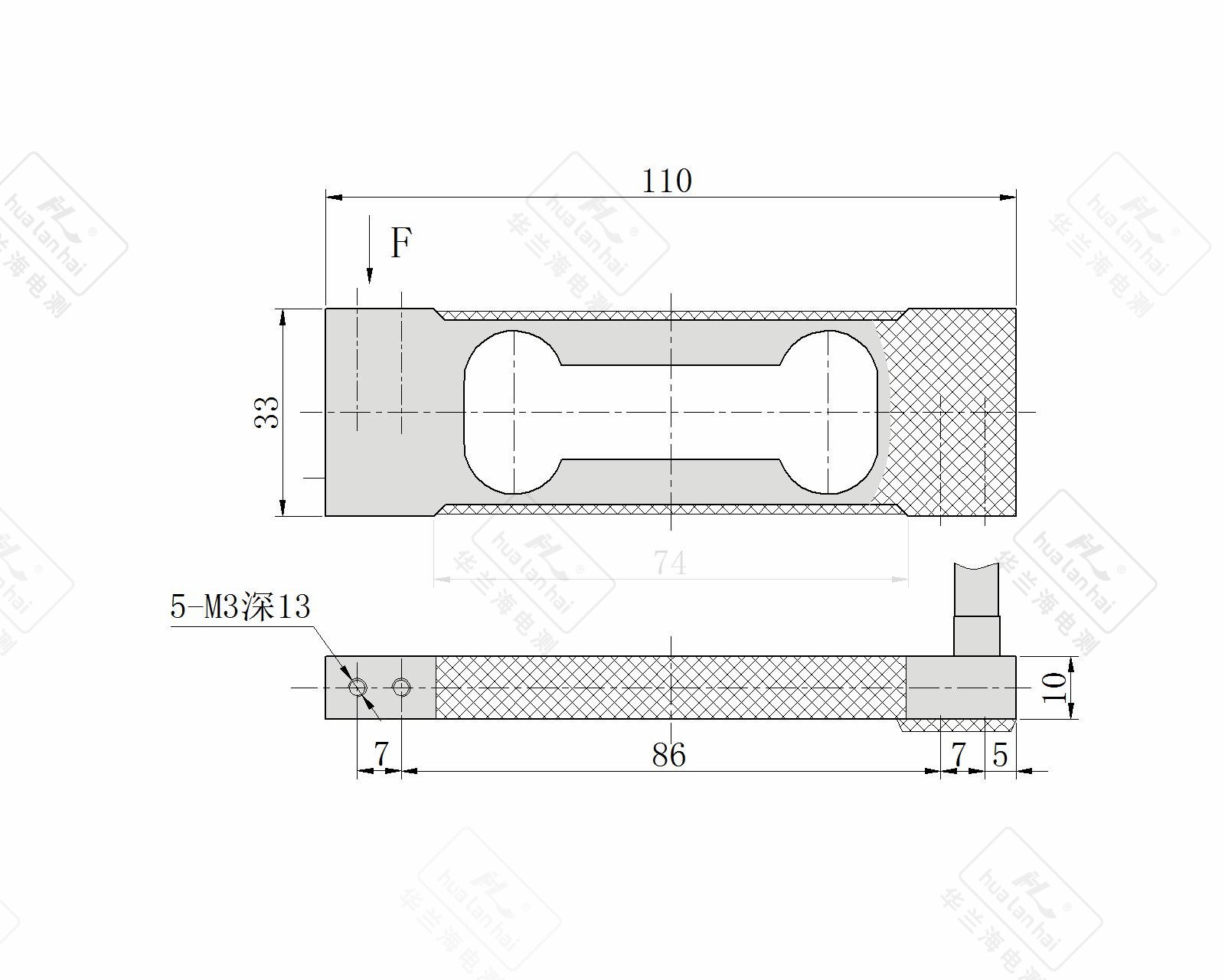

Structural diagram
parameter
|
Sensor range |
0.3kg ~ 5kg |
| Accuracy class | C2/C3 |
|
Comprehensive error |
±0.03 & ±0.02% FS |
|
Output sensitivity |
1.2±0.1 mV/V |
|
creep |
±0.023 & ±0.016% FS/30min |
| Zero output | ±1.5% FS |
| Input impedance | 405±10Ω |
| Output impedance | 350±3Ω |
| insulation resistance | ≥5000 MΩ(100VDC) |
|
Influence of zero temperature |
±0.029 & ±0.019% FS/10℃ |
|
Sensitivity temperature effect |
±0.025 & ±0.017% FS/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Operating temperature range | -20℃ ~ +60 ℃ |
|
Excitation voltage |
9VDC ~ 12VDC |
| Safe overload range | 120% |
| Limit overload range | 150% |
|
Recommended table size |
140*140mm |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
|
External dimension of sensor |
110*10*33 |
|
Mounting hole size |
2-M3 |
|
Location of mounting hole |
X7 |
