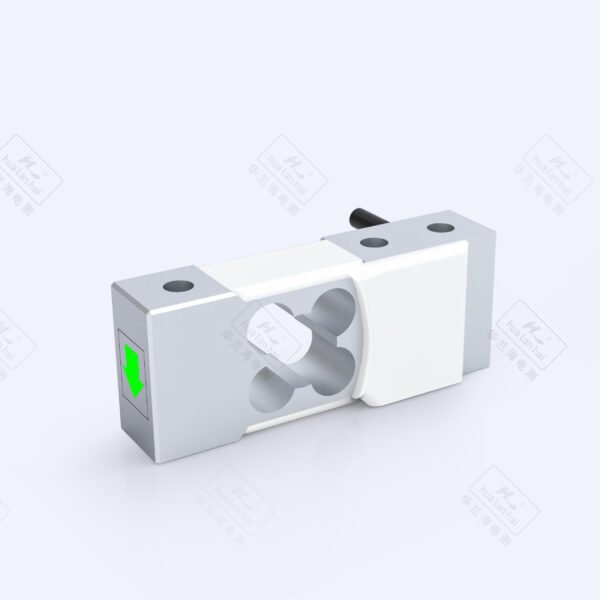

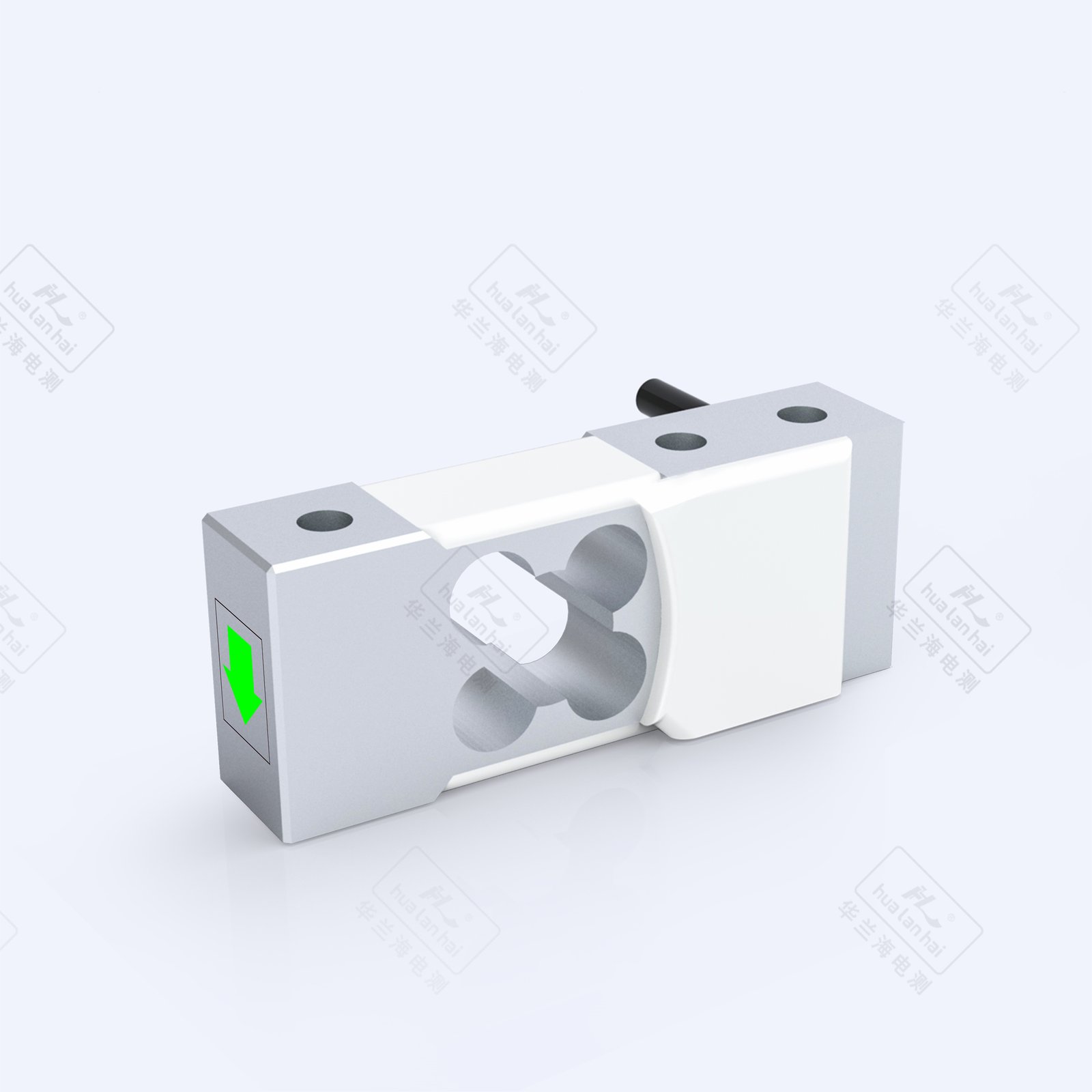

Model: CZL602UA
Use: Count the scales, Tea machine, Industrial weighting
Structural diagram
parameter
| Sensor range | 10kg |
| Accuracy class | C2/C3 |
| Comprehensive error | 0.03% FS |
| Output sensitivity | 2.0±0.2 mV/V |
| creep | 0.02% FS/10min |
| Zero output | ±1.0% FS |
| Input impedance | 395±10Ω |
| Output impedance | 350±3Ω |
| insulation resistance | ≥5000 MΩ(100VDC) |
| Influence of zero temperature | ±0.03% FS/10℃ |
| Sensitivity temperature effect | ±0.03% FS/10℃ |
| Temperature compensation range | -10℃ ~ +40 ℃ |
| Operating temperature range | -20℃ ~ +60 ℃ |
| Excitation voltage | 9VDC ~ 12VDC |
| Safe overload range | 120% |
| Limit overload range | 150% |
| Recommended table size | 100*150mm |
| Material Science | Aluminum Alloy |
| Protection level | IP65 |
| External dimension of sensor | 60*23.5*12.7 |
| Mounting hole size | Φ4.4+2-Φ4.4 |
| Location of mounting hole | X12.7 |
